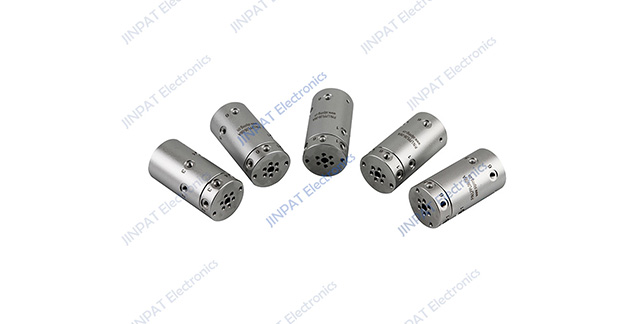

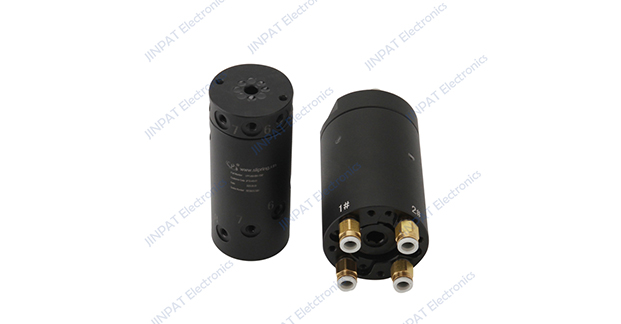

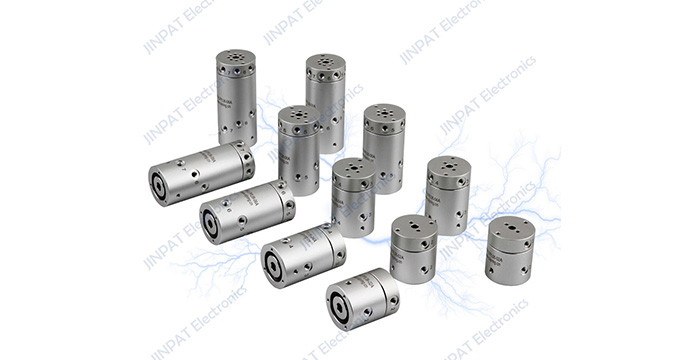

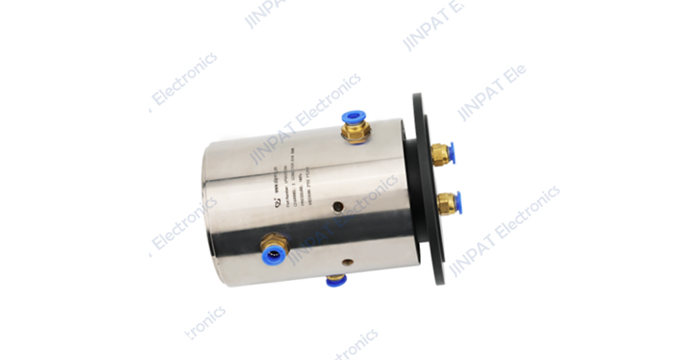

JINPAT's pneumatic hydraulic rotary joints are designed to facilitate the uninterrupted transmission of fluids (such as hydraulic oil) and gases (such as compressed air) between stationary and rotating components. JINPAT's LPPA-LM series rotary joints can rotate 360 degrees. The transmission medium can be inert gas, such as compressed air or vacuum. A slip ring can be integrated to transmit various control signals. The sealing surfaces and sealing rings are made of special materials, offering advantages such as wear resistance, long service life, corrosion resistance, and leak prevention. Customers can install the LPPA rotary union independently according to their application environment.
Features
1.Transmit Pnuematic/Hydraulic,such as steam,compressed air,water,hot oil,hydraulic oil,vacuum,liquid,vitriol,drinks....

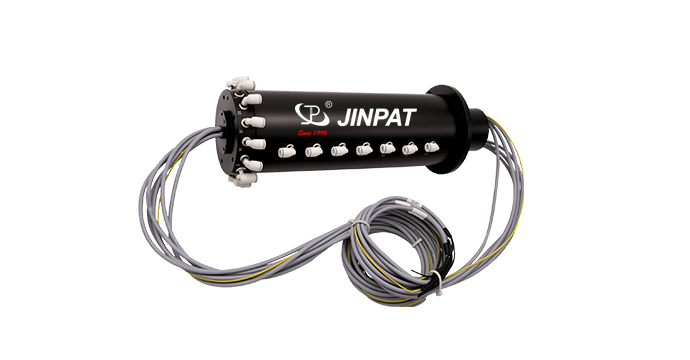

2.Can combine to transmit power and signals ...
3.1,2,4,6,8,12,16,24 and 36 Pneumatic&Flow passage optional,can be customized
41~300 power/signal channel optional
5.Standard ports G1/8",G3/8",M5,G1/4",G1/2" optional
6.Support various pipes of 4mm,6mm,8m,10mm,12mm,15mm,etc
7.More specification can be customized: port size,gas/flow passage no.,electrical channel no.,etc
Contact JINPAT to get a product catalogue now! Feel free to tell us your demands and JINPAT will surely bring you a satisfactory solution.
