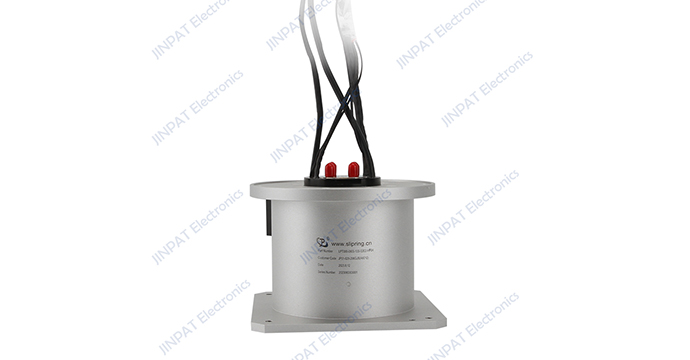

JINPAT LPT000-0803-10S-02E2-HF04 slip rings are capable of transmitting analog signals, digital signals, and electricity, and are widely used in industrial manufacturing. Jingpei Electronics has upgraded the rotary joint branch to integrate various industrial Ethernet signals. In addition to allowing pipes and wires to pass through the slip ring unit, the hollow shaft structure can also be integrated with other electrical slip rings, such as high-frequency slip rings, fiber optic rotary joints, and hydraulic and pneumatic rotary joints.
JINPAT Through-Bore slip rings are suitable for robots, automated industrial production equipment, CT scanners and other large-capacity medical testing equipment. Depending on the physical requirements of the application end, customers can request certain specifications such as through-hole diameter, number of channels, housing material, and compatible signals.
LPT000-0803-10S-02E2-HF04 Outline Drawing
Electronic & Electric |
Mechanical | |||
| Current | 21 signal channels + 2 Ethernet groups |
Working speed |
0~100rpm |
|
Rating Voltage |
28V |
Contact Material |
Precious Metal |
|
Dielectric Strength |
≥500VAC@50Hz |
Shell Material |
Aluminum Alloy |
|
Insulation Resistance |
≥500MΩ@500VDC |
Wire Specifications |
Aviation plug with built-in cable |
|
Environment |
Remarks | |||
Working Temperature |
-40°C~+70°C |
Application |
In-car |
|
Working Humidity |
≤60%RH |
Other |
/ |
|
IP |
IP54 |
Note: "P" stands for power, "S" stands for signal. |
||
|
Specifications | ||||
| Channel | CH1~CH4 | Starting Torque | 0.3N.m | |
| Interface Tpe |
SMA-F(50Ω) BMA-F(50Ω) |
Continuous Rotational Torque | 0.1N.m | |
| Type | I | Body Material | Aluminum Alloy | |
| Frequenc Range | DC-8GHz | Face treatment | Conductive Oxidation | |
| Average Power | 10W | Weight | 0.4kg | |
| VSWR,Max | 1.6 | Operation Temperature | -40°C~+65°C | |
| VSWR WOW | 0.1 | Storage Temperature | -50°C~+75°C | |
| Insertion Loss,Max. | 1.0dB | Isolation,min | 55dB | |
|
Insertion Loss WOW |
0.15d | Relative stability | 1~4° | |
LPT Through-bore Slip Rings Installation Guide:
1.Arrange wires of the rotor side and the stator side before installation. Stabilize the slip ring on the rotating shaft. Adjust the position of the shaft and the mounting hole and use 4 screws on the rotor side to fasten the components. Ensure the concentricity between the shaft and the slip ring before fixing the screws.
2.Insert the poke rod in the U slot of the anti-rotation tab. Meanwhile, arrange the wires to avoid twining with the rotor.
3.Slip rings are precise electronic components. Take protection measures in case of harsh environment or apply slip rings with higher protection level.
LPT Through-bore Slip Rings Precautions:
1.The slip ring cannot bear the weight of its connected equipment. Also, wires should be free from extra pull and weight.
2.Keep wires intact during installation to avoid any poor performances due to damage of the wire insulating layers.
3.Adopt flexible connection instead of rigid connection between the rotor side and the stator side to ensure longer life span of the slip ring.
4.Stabilize the screws with locking measures to avoid loosening and dropping due to vibrations and shocks during operation
