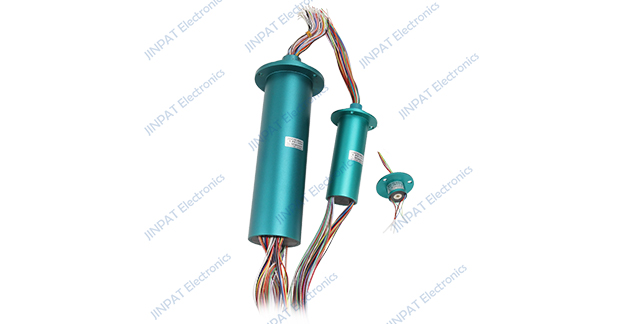

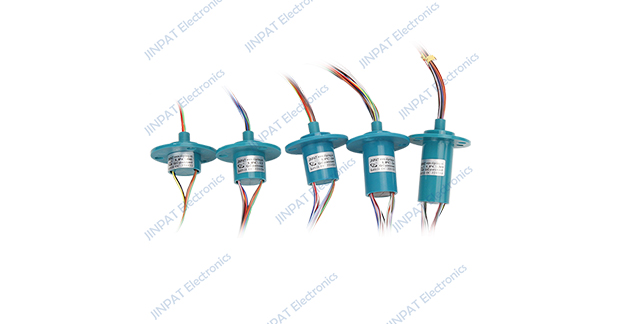

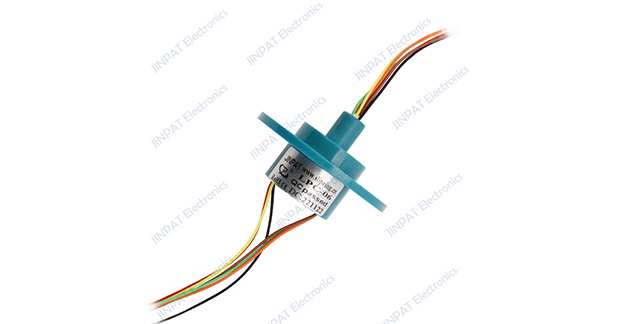

Capsule Slip Rings

Designed to meet the electrical transmission needs of small to medium sized systems, the Cap Slip Rings range from 22mm to 54mm OD with up to 125 channels. These slip rings feature a high standard of surface finish to ensure excellent durability and reliability in harsh environments. Their compact form factor makes them easy to install and suitable for applications where space is limited.

The use of gold-to-gold contacts ensures extremely low contact resistance and long operating life, making them particularly suitable for transmitting weak control signals. Users can select different combinations of electrical pathways according to specific needs, including a wide range of options for video, control, sensors and industrial Ethernet, for a flexible response to various application scenarios.

Whether in the field of industrial automation, robotics or medical equipment, the cap slip ring series offers reliable performance and excellent transmission, making it the ideal electrical connection solution!

If you have special requirements, please contact us immediately so that our sales engineers can recommend a slip ring model or design a customised slip ring for you.

Product Model

Model Code	Voltage	Current (A)	Rotational speed	Path number	Outer diameter x Length (mm)	PDF
LPC-125 Series	0~240VAC/DC	2A	0~300rpm	125	ø54±0.2*200±0.8	/
LPC-76 Series	0~240VAC/DC	2A	0~300rpm	76	ø35.5±0.15*105.7±0.4	/
LPC-56 Series	0~240VAC/DC	2A	0~300rpm	56	ø25±0.15*63~85.7±0.3	/
LPC-36 Series	0~240VAC/DC	2A	0~300rpm	36	ø22~24.8±0.15* 57.3~68.5±0.3	/
LPC-30 Series	0~240VAC/DC	2A	0~300rpm	30	ø22±0.15*49.6~62.3±0.3	/
LPC-24 Series	0~240VAC/DC	2A	0~300rpm	24	ø22~24.8±0.15*42.3~54.8±0.3	/
LPC-18 Series	0~240VAC/DC	2A	0~300rpm	18	ø22±0.15*32.9±0.3	/
LPC-15YS	0~240VAC/DC	2A	0~1000rpm	15	ø22±0.15*34±0.3	/
LPC-12 Series	0~240VAC/DC	2A	0~300rpm	12	20.2~30mm	/
LPC-08YS	0~240VAC/DC	2A	0~60rpm	8	ø22*23±0.2	/
LPC-06 series	0~240VAC/DC	2A	0~300rpm	6	18.6~32.5mm	/
LPM-30 Series	0~110VAC/DC	1A	0~300rpm	30	ø16±0.1*37±0.3	/
LPM-24 Series	0~110VAC/DC	1A	0~300rpm	24	ø15.5±0.1*34±0.3	/
LPM-18 Series	0~110VAC/DC	1A	0~300rpm	18	ø12.8±0.1*23.5±0.2	/
LPM-12 Series	0~110VAC/DC	2A	0~300rpm	12	ø12.5~12.8±0.1*20~30±0.2	/
LPM-06 Series	0~110VAC/DC	2A	0~300rpm	6	ø12.5±0.1*18.2±0.2	/
LPM-04 Series	0~110VAC/DC	2A	0~300rpm	4	ø12.5±0.1*15.6±0.2	/
LPMS-15	0~48VAC/DC	1A	0~300rpm	15	ø7.6±0.1*19.1±0.2	/
LPMS-12 Series	0~48VAC/DC	1A	0~300rpm	12	ø6.5~7.6±0.1*17.4±0.2	/
LPMS-10 Series	0~48VAC/DC	1A	0~300rpm	10	ø7.4~6.8±0.1*13.5±0.2	/
LPMS-08 Series	0~48VAC/DC	1A	0~300rpm	8	ø5.5~6.5±0.1*11.8~13.5±0.2	/
LPMS-06 Series	0~48VAC/DC	1A	0~300rpm	6	ø7.9~8.5±0.1*11.2±0.2	/
LPMS-05 Series	0~48VAC/DC	1A	0~300rpm	5	ø5.5~6.5±0.1*9.35±0.2	/
LPMS-04 Series	0~48VAC/DC	1A	0~300rpm	4	ø7.9~8.5±0.1*10.8±0.2	/
LPC-56-1202-1005-01HD-01E3	0~110V AC/DC	2A+5A	0~50 rpm	24	ø25*85.7	/
LPC-56YL-2302-02SD1-01E3	0~240V AC/DC（ power） 48V AC/DC（ Signa）	2A	0~250rpm	26	Φ25.4*76.8	/
LPC-12YT-1202-01HC-W	12V AC/DC	2A	0~300rpm	13	Φ24.8*39.8	/
LPC-56A-0405-02SD2-01E3-23S	0~240VAC/DC	5A	0~300rpm	30	Φ25*85.7	/
LPC-30-1302-0201-05S-E2-02SDI	0~60 V DC	2A+1A	0~100rpm	23	ø22*49.8	/
LPC-36A-0308-0204-E2-E3	0~450V AC/DC	8A+4A	0~250rpm	7	Φ22*60	/
LPC-TM25-0209-01U3-01HD	19V AC/DC	9A	0~1rpm	4	Φ24.8*100.5	/
LPC-D40-0410-1602-01E2-FO01	240V	10A+2A	0~300rpm	22	ø42*70	/
LPC-D34-0410-0205-1202-01E3-03SD1	0~240V AC/DC	10A+5A+2A	0~300rpm	22	ø34*112.9	/
LPC-18-0602-IP67-EX	0~24V AC/DC	2A	0~50rpm	6	ø45*95.6	/
LPC-18YU-0802-03S-01SD2	36V AC/DC	2A	0~120rpm	12	ø22*32.9	/
LPC-24-0404-01S-01E3	12V AC/DC	4A	0~10rpm	6	ø22±0.15*42.3±0.3	/
LPC-0208-0205-13S-FO01	0~48V AC/DC	8A+5A	0~50rpm	17	ø52.5*97	/
LPM-12TL-0402-01E2-IP54	16VAC	2A	0~30rpm	4	ø12.5±0.05*25±0.5	/
LPM-12H-0201-01AV-02S	0~110VAC/DC	1A	0~120rpm（forward and backward）	12	ø12.4*20±0.2	/
LPM-12U-0601-02S-E2	12VAC/DC	1A	0~300rpm	12	ø12.5±0.1*25.5	/
LPM-12U-0303	0~24VAC/DC	3A	0~6rpm	12	ø12.5*25.5	/
LPM-12YU-1202	0~110VAC/DC	2A	0~50rpm	12	ø12.5±0.1*25.5±0.2	/
LPM-12-0203-0101	0~24VAC/DC	1×1A/2×3A	0~300rpm	12	ø12.5*25.2±0.3	/
LPM-24A-VE	0~110VAC/24VDC	1A	0~300rpm	24	ø15.5±0.2*39.7±0.2	/
LPMS-08D-0801	0~48VAC/DC	1A	0~50rpm	8	ø5.5*20	/
LPMS-15-0901-06S	0~48VAC/DC	1A	0~10rpm	15	less than ø7.3*19.08±0.3	/
LPMS-18U-0203-03S-01E3	0~12VAC/DC	3A	0~50rpm	2	ø12.5±0.1*23.5±0.3	/
LPMS-12U-0801-04S	0~24VAC/DC	1A	0~20rpm	12	ø6.5±0.1*17.4±0.2	/
LPMS-08YLP-0301	0~48VAC/DC	1A	0~300rpm	8	ø6.5±0.1*11.8±0.2	/
LPMS-08A-0201-04S	0~24VAC/DC	2A	0~50rpm	8	ø12.5±0.1*11.7±0.2	/
LPMS-12U-0801-04S	0~24VAC/DC	1A	0~20rpm	12	ø6.15±0.1*17.4±0.2	/
LPMS-10-1001	0~7.4VAC/DC	1A	0~300rpm	10	ø8.4±0.1*13.5±0.2	/
