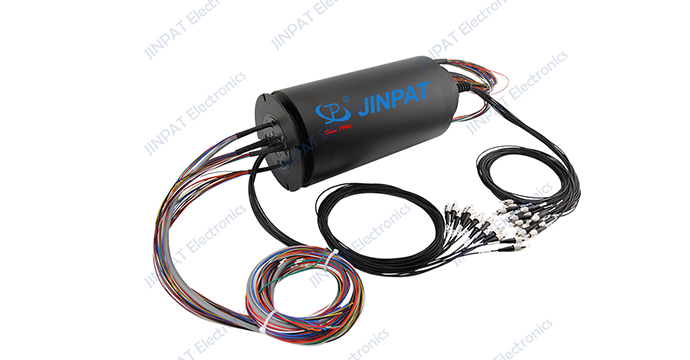

This is a 12-channel Fiber-Optic integrated Through Bore Slip Ring with a service life of more than 10 million revolutions and an insertion loss of less than 5db. It is a single-mode fiber with an operating wavelength of 1310~1550nm. It also has excellent temperature resistance and a sturdy shell, and can work normally at low temperatures of -30℃+80℃. The shell is made of aluminum alloy, and the installation method is simple. It is both light and sturdy. It is the best partner for high-speed and lossless signal transmission of precision instruments and high-end automation equipment!
LPT000-1210-39S-01E3-12FO Outline Drawing
Electronic & Electric |
Mechanical | |||
Circuits |
Total |
60 CKT |
Working Speed |
30rpm |
Detail |
12*10A+39*Signals+1*1000Mbps |
Inner Diameter |
/ |
|
Rating Voltage |
220V |
Contact Material |
Precious Metal |
|
Dielectric Strength |
≥500VAC@50Hz |
Shell Material |
Aluminum Alloy |
|
Insulation Resistance |
≥500MΩ@500VDC |
Lead Wire Length |
Stator:≥1500mm Rotor:≥1500mm |
|
Environment |
Remarks | |||
Working Temperature |
-30°C~+80°C |
Working life |
＞10,000,000rpm |
|
Working Humidity |
≤85%RH |
Other |
/ |
|
IP |
IP51 |
Note: "P" stands for power, "S" stands for signal. |
||
|
Specifications | ||||
| Channel Number | 12 | Wavelength range | SM:1310-1550nm | |
|
Fiber types |
SM | Insertion loss | ＜5dB | |
| Crosstalk | ≥50dB | Insertion loss ripple | ＜2dB | |
| Jacket types | 2.0mm/ armor | Connector types | FC/PC | |
Product Advantages：
★ The product can work normally at -30-+80 degrees Celsius, and its service life is greater than 10 million revolutions
★ The number of optical fiber channels is 12, single mode, the wavelength range is 1310/1550nm, and the insertion loss is <5db
★ Easy installation
LPT Through-bore Slip Rings Installation Guide:
1.Arrange wires of the rotor side and the stator side before installation. Stabilize the slip ring on the rotating shaft. Adjust the position of the shaft and the mounting hole and use 4 screws on the rotor side to fasten the components. Ensure the concentricity between the shaft and the slip ring before fixing the screws.
2.Insert the poke rod in the U slot of the anti-rotation tab. Meanwhile, arrange the wires to avoid twining with the rotor.
3.Slip rings are precise electronic components. Take protection measures in case of harsh environment or apply slip rings with higher protection level.
LPT Through-bore Slip Rings Precautions:
1.The slip ring cannot bear the weight of its connected equipment. Also, wires should be free from extra pull and weight.
2.Keep wires intact during installation to avoid any poor performances due to damage of the wire insulating layers.
3.Adopt flexible connection instead of rigid connection between the rotor side and the stator side to ensure longer life span of the slip ring.
4.Stabilize the screws with locking measures to avoid loosening and dropping due to vibrations and shocks during operation
