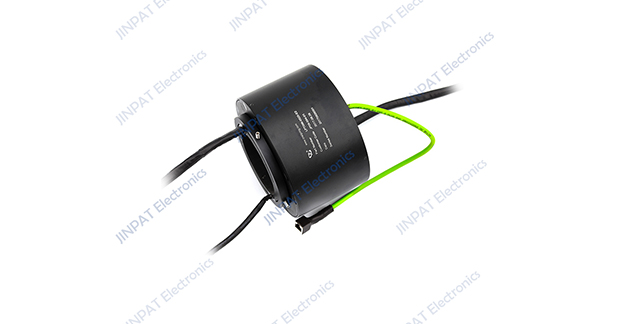

JINPAT's LPT-096 Series Through Bore Slip Rings,inner diameter is 96mm, outer diameter is 185mm, 6-way*5A, 96mm barrier-free through hole provides wiring space for hydraulic, pneumatic or coaxial shaft installation.
It provides an economical, readily available solution when compact through-hole configurations are required. The LPT096 utilizes Crystalline fiber brush technology, which offers several advantages over traditional slip ring contacts, including multiple contact points per brush bundle, low contact force per fiber, and low contact wear rate. Additionally, fiber brushes require no lubrication and generate virtually no wear debris. The LPT096 has serviceable brush blocks.
Electronic & Electric |
Mechanical | |||
Circuits |
Total |
6 CKT |
Working Speed |
0~300rpm |
Detail |
6A |
Inner Diameter |
∅96mm |
|
Rating Voltage |
240VAC/DC |
Contact Material |
Precious Metal |
|
Dielectric Strength |
1000VAC@50Hz |
Shell Material |
Aluminum alloy |
|
Insulation Resistance |
≥500MΩ@500VDC |
Lead Wire Length |
Stator:300mm Rotor:300mm |
|
Environment |
Remarks | |||
Working Temperature |
-20°C~+60°C |
Application |
/ |
|
Working Humidity |
≤60%RH |
Other |
/ |
|
IP |
IP54 or higher |
Note: "P" stands for power, "S" stands for signal. |
||
LPT Through-bore Slip Rings Installation Guide:
1.Arrange wires of the rotor side and the stator side before installation. Stabilize the slip ring on the rotating shaft. Adjust the position of the shaft and the mounting hole and use 4 screws on the rotor side to fasten the components. Ensure the concentricity between the shaft and the slip ring before fixing the screws.
2.Insert the poke rod in the U slot of the anti-rotation tab. Meanwhile, arrange the wires to avoid twining with the rotor.
3.Slip rings are precise electronic components. Take protection measures in case of harsh environment or apply slip rings with higher protection level.
LPT Through-bore Slip Rings Precautions:
1.The slip ring cannot bear the weight of its connected equipment. Also, wires should be free from extra pull and weight.
2.Keep wires intact during installation to avoid any poor performances due to damage of the wire insulating layers.
3.Adopt flexible connection instead of rigid connection between the rotor side and the stator side to ensure longer life span of the slip ring.
4.Stabilize the screws with locking measures to avoid loosening and dropping due to vibrations and shocks during operation
