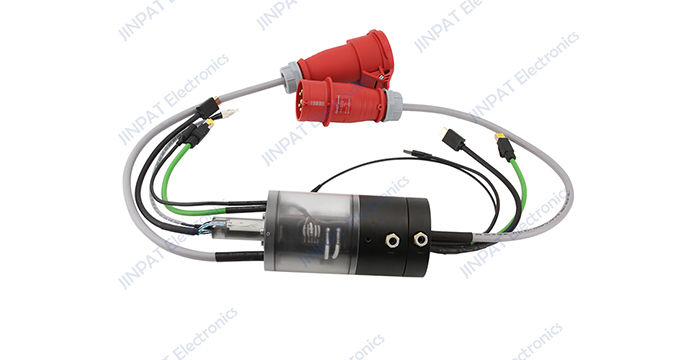

Representative product model:LPPL000-02A-0516-01U2-01E2-01HD
This slip ring integrates gas-liquid channels, electrical and optical fiber signals into a single multi-functional module. Its highly integrated structure maximizes space efficiency, making it ideal for various power and signal transmission needs, including both channel and gas-liquid applications. The gas-liquid section can transmit not only gases but also water, oil, and other media, with the number and size of channels adjustable to meet specific requirements.
The electrical section includes power rings (with industrial connectors), USB 2.0 signal rings, Profinet industrial Ethernet signal rings, and HDMI high-definition video signal rings, enabling stable transmission of current, industrial communication data, and high-definition video information simultaneously. The number of circuits, power specifications, and signal types can be customized. Additionally, optical fiber specifications, such as rate, modulus, wavelength, and channel count, can be tailored to customer requirements.
For further details or tailored solutions, Please feel free to contact us at any time
LPPL000-02A-0516-01U2-01E2-01HD Outline Drawing
This slip ring is a multi-functional device integrating different functional modules. Its highly integrated structure maximizes space savings, making it ideal for equipment requiring multiple power, signal channels, and fluid/air pathways.
The slip ring consists of three main sections: the fluid/air module, the electrical module, and the fiber optic module. The fluid/air module can transmit gases as well as liquids like water and oil, with the number and size of channels adjustable according to specific needs. The electrical module includes power rings (with industrial connectors), USB 2.0 signal rings, Profinet industrial Ethernet rings, and HDMI high-definition video signal rings, enabling stable transmission of current, industrial communication data, and HD video signals. The number of circuits, power capacity, and signal types can be customized upon request. The fiber optic module supports optical signal transmission, customizable for speed, modulation, wavelength, and channel specifications to meet customer requirements.
| Rotary Unions & Joints Spec. | |||
Passages |
1~2 |
Joint thread |
G1/4'' |
Trachea Size |
φ8 |
Orifice Flow |
φ6 |
Medium Type |
Air |
Max.Operating Pressure |
1MPa |
| Optical Fiber Parameter | |||
Channel number |
1 |
Insertion Loss |
<2dB |
Fiber Types |
SM(9/125um) |
Insertion Loss-WOW |
<0.5dB |
Working Wavelength |
SM:1310/1550nm |
Return Loss |
>40dB |
Light Power |
23dBm |
Jacket Types |
3mm(armor) |
Connector Types |
Rotor:FC/PC Stator:FC/PC |
||
| Electronic & Electri | Mechanical | ||
Tatal |
36 CKT | Working Speed | 0~300rpm |
Detail |
5*16A+1Groups*USB2.0 Signal+1Groups Profinet 100Mbps+1GROUPS*hdmi(1080P) | Inner Diameter |
/ |
Rating Voltage |
12V/240V AC/DC |
Contact Material | Precious Metal(P) Gold To Gold(S) |
| Dielectric Strength | 500VAC@50Hz(P) 100VAC@50Hz(S) |
Housing Material | Aluminium Alloy/Project Plastic(PMMA) |
| Insulation Resistance | ≥100MΩ500VDC（P） ≥10MΩ@100VDC（S） |
Lead Wire Length | / |
| Environment | Remarks | ||
Working Temperature |
-20°C~+60°C |
Application |
customizable |
Working Humidity |
≤60％RH |
Other |
/ |
IP |
IP40 |
Note:“P”stands for power,"S"stands for signal. |
|
Features:
1.Multifunctional Integration
2.High Efficiency
3.Customization
4.Versatility
MAIN APPLICATIONS:
Automation Equipment
