As an explorer of domestic private slip ring manufacturers, JINPAT Electronics has the ability to develop slip rings required by almost all medical devices on the market, and is a slip ring manufacturer that provides a package of solutions for medical equipment slip rings in China. Compared with other electromechanical equipment fields, precision medical equipment slip rings have their own characteristics. Based on the product solutions JINPAT Electronics has provided to upstream manufacturers over the years, we can classify these slip rings according to their product characteristics and application terminals.
Like all industries, medical device slip rings are also a technical field with a high customization rate. If we classify them according to the characteristics of slip ring products, we can divide common medical device slip rings into several categories: high-speed slip rings, Capsule Slip Rings and Rotary Joint Integrated Electrical Slip Ring. First, let's look at high-speed medical device slip rings. The representative product is the pulse signal slip ring. The pulse signal slip rings provided by JINPAT to the market have a small number of channels, but their speeds are basically above 1000rpm, up to 5000rpm. JINPAT Electronics has mass-produced high-speed slip rings of 20,000rpm, so it is basically not difficult to handle medical device slip rings below 5000rpm.
Looking at Capsule Slip Rings slip rings, JINPAT Electronics' LPMS series slip rings have a diameter of 5.5mm, and they have the technology of 4.5mm diameter slip rings, which allows them to be installed in small capsule endoscopes and other small and micro medical devices. Typical application equipment includes DIY mouse EEG recording equipment in biological laboratories of major universities. The standard models of JINPAT LPMS series products support mixed transmission of current and signals. Among them, products with more channels also support the integration of SDI, USB2.0, Gigabit Ethernet and other signals, which can meet the needs of some special medical devices on the market towards miniaturization and micro-miniaturization technology development trends.

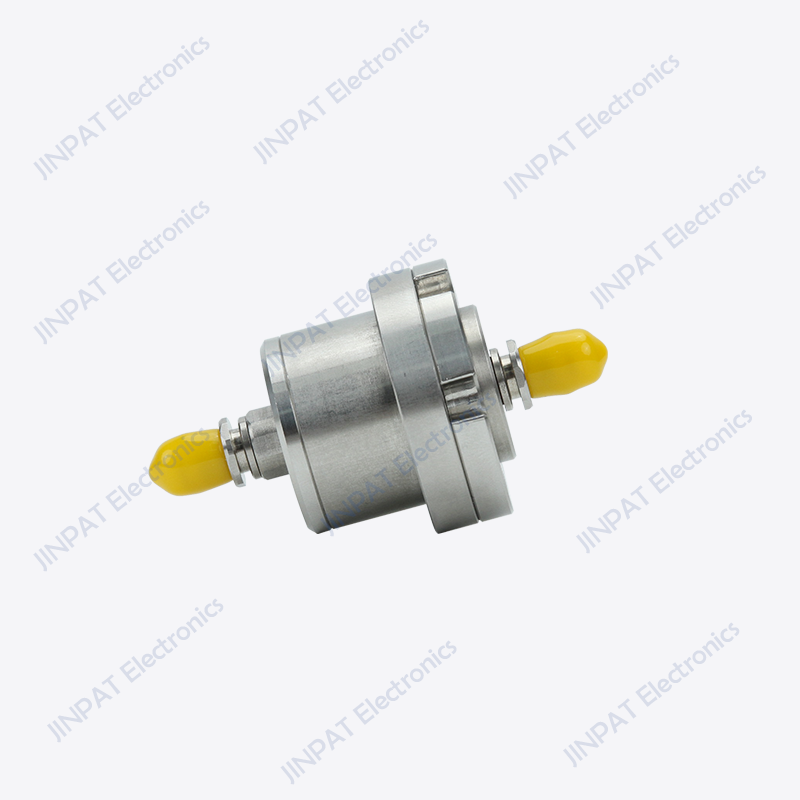

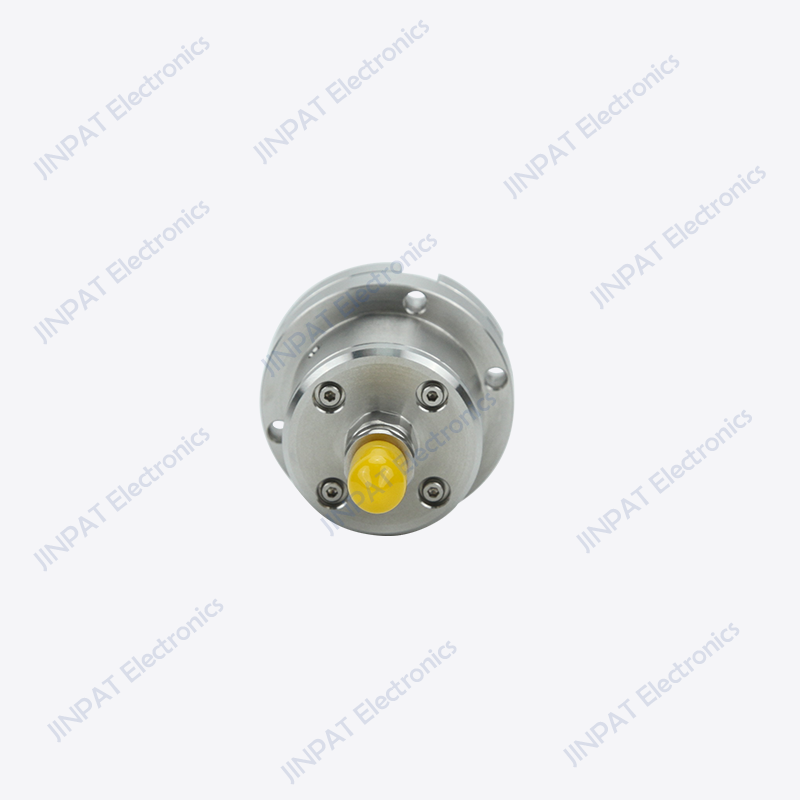

The last type is fiber optic slip rings and Rotary Joint Integrated Electrical Slip Ring. JINPAT Electronics has developed many types of fiber optic slip rings, and the demand for fiber optic slip rings in medical devices is mostly concentrated in the field of single-channel slip rings. JINPAT has developed a variety of single-channel optical slip rings with different shapes, which can fully meet the current market demand for separate installation or integrated use of medical equipment. In addition to being used alone, fiber optic slip rings are often integrated with various small and medium-sized high-speed conductive slip rings of JINPAT Electronics. For example, products such as LPFO-01G with a larger diameter can be integrated into the LPT series of products, and models such as LPFO-01A/C can be fully integrated into the LPC-T series of cap-type slip rings with through holes. Compared with optoelectronic integrated slip rings from other manufacturers, JINPAT similar products have more advantages in electrical and mechanical performance, cost control, and delivery cycle.
