◈ Contact Material Gold to Gold
Features:
Transmit analog and digital signals
Can be integrated with standard module, while transmitting power and signals
Advanced fiber brush technique, maintenance free, no need to add lubricant
Multi-point contact, low friction and low wear
Adopts special groove design, smooth rotation, low electrical noise
Electronic & Electric |
Mechanical |
||
Number of Circuits |
6 |
Working Speed |
0~300rpm |
Voltage |
110VAC/DC |
Contact Material |
Gold to Gold |
Current |
2A/Channel |
Housing Material |
Allumnium Alloy |
Dielectric Strength |
≥200V@@50Hz |
Wire Tpe |
AWG28 |
Insulation Resistance |
50 MΩ@200VDC |
Wire Length |
300mm Criterion |
Environment |
Others |
||
Temperature |
-20°C~+80°C |
Applications |
\ |
Humidity |
≤60%RH |
Life Span |
≥50,000,000revolutions(forreference) |
Protection Grade |
IP40 or higher |
Dynamic Contact Resistance |
≤20mΩ |

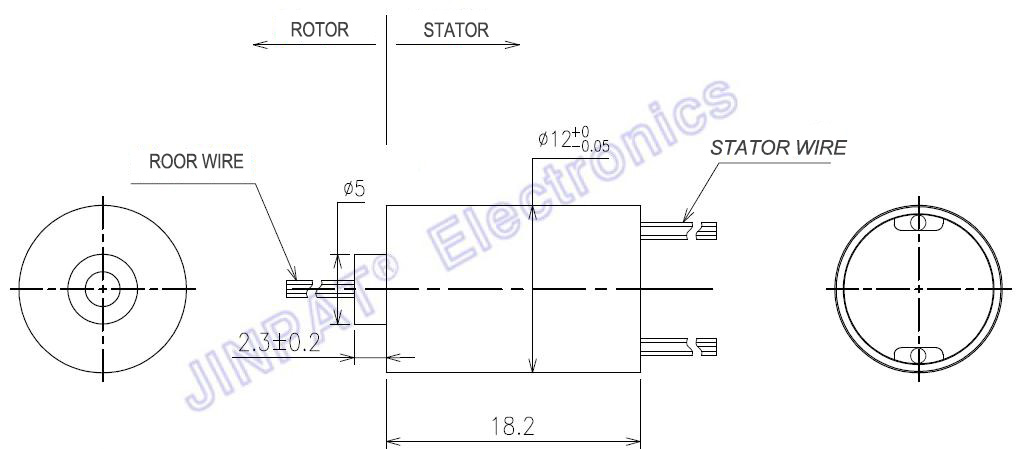

6 Channels High End Middle-Size Capsule Slip Ring Outline Drawing
Standard modular design
Low torque ≤0.9g.m
Optional Size and Appearance, cater to the customer’s need
Adopts advanced fiber brush plating technique, low electrical noise and low wear
Adopt military class plating technique ensures long product life
360° unrestricted rotation and constant transmission USB, HDMI, SDI, Ethernet, RS422 and other signals
