◈ Contact Material Gold to Gold
LPC-24AN is upgraded model from JINPAT standard capsule slip ring with an improved electronic performance. OD 20
mm, Length 42.3mm.
Adopt edge-cutting high standard surface processing technique. With a more condensed and precise structure.
Smooth rotation, compact structure, low torque, compatible with Data bus protocol.
Suitable for small rotary system, transmits weak control signal.
Adopt 90-degree elbow groove design, smooth rotation, low torque and low electrical noise.
Adopt gold-to-gold contact, ensure stability and long product life. Mainly applied in civil and commercial field.
Electronic & Electric |
Mechanical |
||
Number of Circuits |
24 |
Working Speed |
0~300rpm |
Voltage |
240VAC/DC |
Contact Material |
Gold to Gold |
Current |
2A/Can be mixed |
Housing Material |
allumnium alloy |
Dielectric Strength |
Between the two road |
Wire Tpe |
AWG28 |
Insulatio Resistance |
≥1000mΩ@500VDC |
Wire Length |
300mm criterion |
Environment |
Remarks |
||
Temperature |
-20°C~+80° |
Life Span |
≥5000million |
Humidity |
≤60%RH |
||
Protection Grade |
IP40 or higher |
Dynamic Contact Resistance |
≤20mΩ |

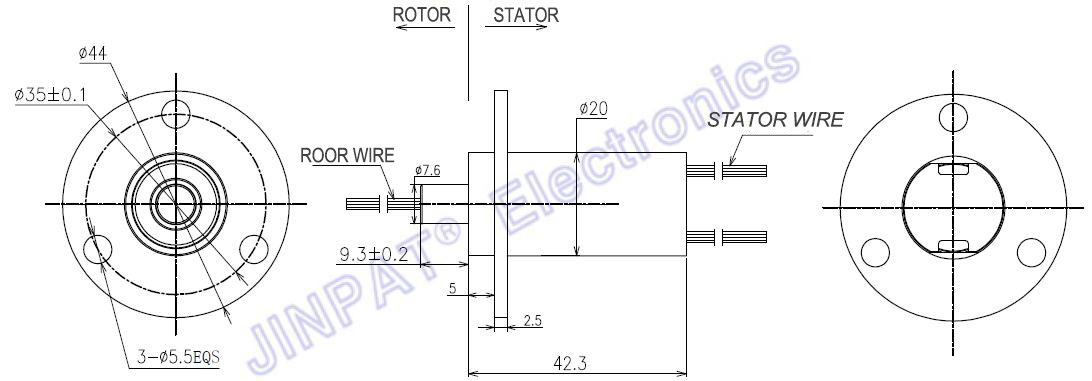

24 Channels High End Middle-Size Capsule Slip Ring Outline Drawing
