12 Channels High End Middle-Size Special Capsule Slip Ring

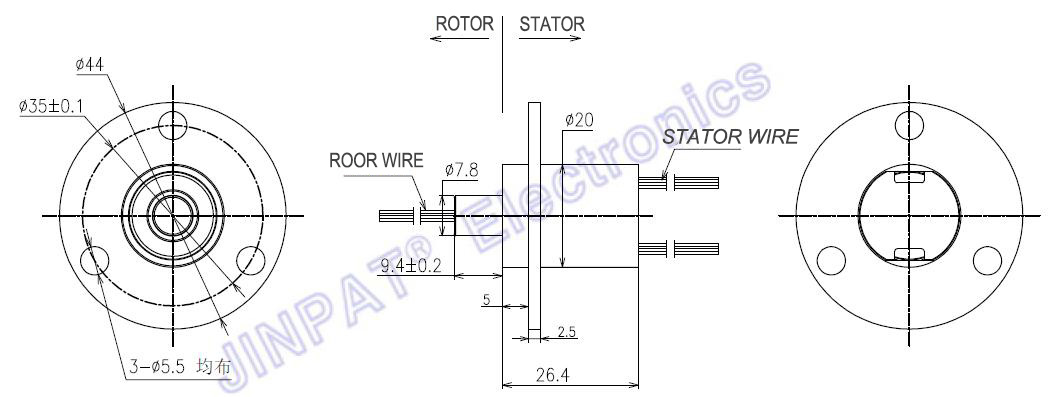

LPC-12AN is upgraded model from JINPAT standard capsule slip ring with an improved electronic performance. OD 20mm, Length 12mm.*2A
Adopt edge-cutting high standard surface processing technique. With a more condensed and precise structure.
Smooth rotation, compact structure, low torque, compatible with Data bus protocol.
Suitable for small rotary system, transmits weak control signal.
Adopt 90-degree elbow groove design, smooth rotation, low torque and low electrical noise.
Adopt gold-to-gold contact, ensure stability and long product life. Mainly applied in civil and commercial field.


Product Details

Electronic & Electric

Electronic & Electric

Number of Circuits

12

               Working Speed

0~300rpm

Voltage

240VAC/DC

              Contact Material

Gold to Gold

Current

2A/Can be mixed

               Housing Material

 Allumnium Alloy

Dielectric Strength

Between the two road  ≥500V@50Hz

                   Wire Tpe

 AWG28

Insulatio Resistance

≥1000mΩ@500VDC

                 Wire Length

300mm Criterion

Environment

Remarks

Temperature

 -20°C~+80°

Life Span

≥5000million

Humidity

≤60%RH

Protection Grade

IP40 or higher

Dynamic Contact Resistance

≤20mΩ
