6-Way Slip Ring LPR-6, Exquisite Design, With Pin Instead Of Wire Contact, In line with RoHs environmental requirements, reliable and fast installation, current carrying capacity is stronger; Ensure low friction, low contact resistance, no friction debris, long service life, is designed for industrial manufacturing mercury-free slip ring, pure environmental design, is widely used in wind turbines, assembly line equipment, rotating working plate, cable reel and hot roller and other equipment.
Electronic & Electric |
Mechanical |
|||
Circuits |
Total |
6CKT |
Working Speed |
0~300rpm |
Detail |
6CKT*20A |
Contact Material |
Gold Against Gold |
|
Rating Voltage |
0~240V AC/DC |
Shell material |
Engineering Plastics |
|
Dielectric Strength |
≥500VAC@50Hz |
Wire length |
/ | |
Insulation Resistance |
≥1000MΩ@500VDC |
Dynamic resistance fluctuation Value |
≤35mΩ |
|
Environment |
Remarks |
|||
Working Temperature |
-20°C~+60°C |
Application Area |
/ |
|
Working Humidity |
≤60%RH |
Wire SpecifiCations |
Terminal |
|
IP |
/ |
|||

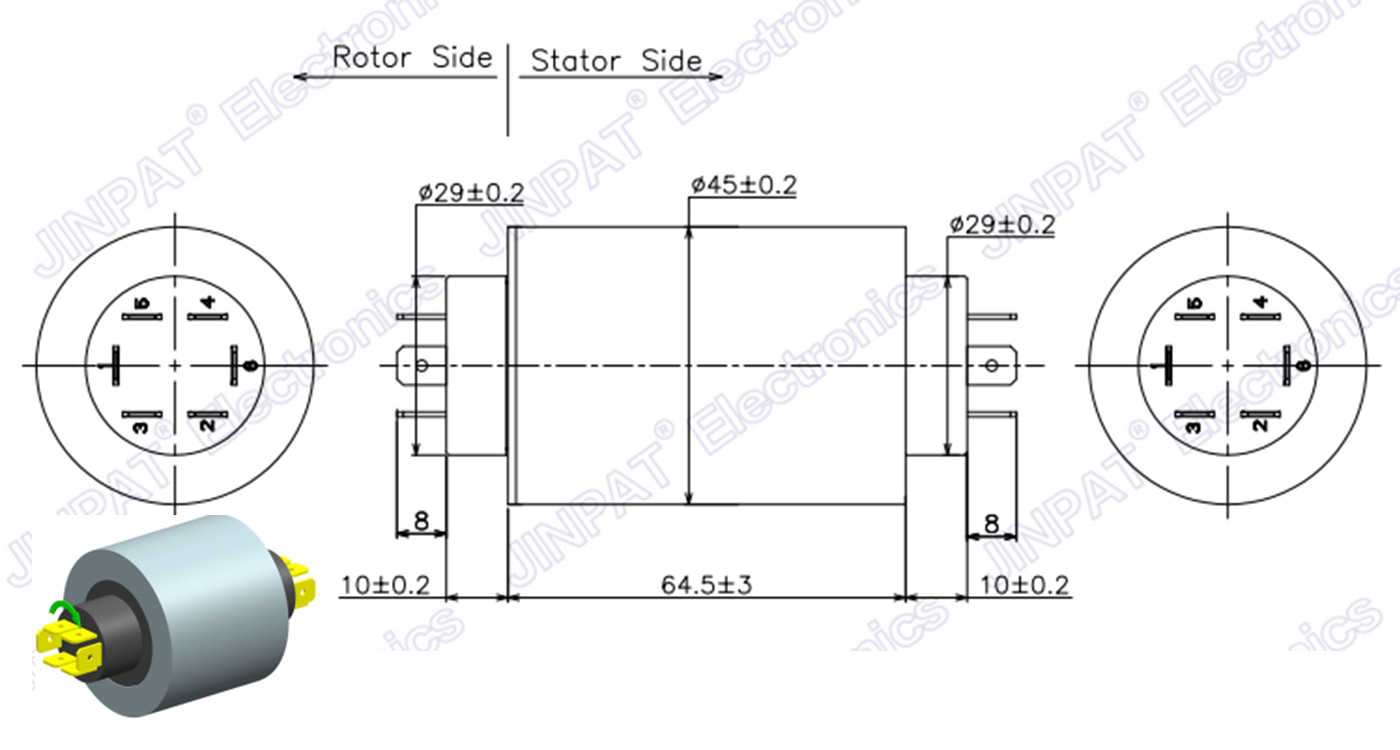

LPR-6 Outline Drawing
★ Pins Replace Wire Contacts
★ Transmit Current And Signal
★ Smooth Running
★ Low Contact Resistance
★ Easy To Install
Jingpei Electronic Professional Slip Ring Manufacturer, Has Been Evaluated The State Special New Small Giant Enterprise Title.
Jingpei Strong Technical Strength, With More Than 10000 Kinds Of Slip Ring Scheme Drawings Database, Products Sold Worldwide
★ Wind Power
★ Turn The Working Turntable
★ Cable Reel And Hot Roller
★ Assembly Line Equipment
