LPS split slip ring consists of separated rotor and contact brush combination, its rotor part can be with through-hole for threading shaft, which can better match the space limitation and installation demand in customer's system, meanwhile, we can customize all kinds of similar split slip ring according to your specific demand, stator and rotor separation, pin instead of wire contact, transmission of high current 15-way rotor and contact brush combination, centre overbored and no overbored for selection of slip ring.
If you have any special requirements, please contact us immediately so that our sales engineers can recommend slip ring models or design customised slip rings for you.
Electronic & Electric |
Mechanical | |||
Circuits |
Total |
15CKT |
Working Speed |
0~100rpm |
Detail |
15×2A |
Eletrical Noise |
≤35mΩ（Operate at 5 rpm） |
|
Rating Voltage |
0~240VAC/DC |
Contact Material |
Gold to Gold |
|
Dielectric Strength |
≥500VAC@50Hz |
Housing Material |
Engineering plastics（Peacock Blue） |
|
Insulation Resistance |
≥100MΩ@500VDC |
Lead Wire Length |
Rotor:250±5mm Stator：Copper strip |
|
Environment |
Remarks | |||
Working Temperature |
-20°C~+60°C |
Application |
/ |
|
Working Humidity |
≤60%RH |
Other |
/ |
|
IP |
IP00 |
/ |
||

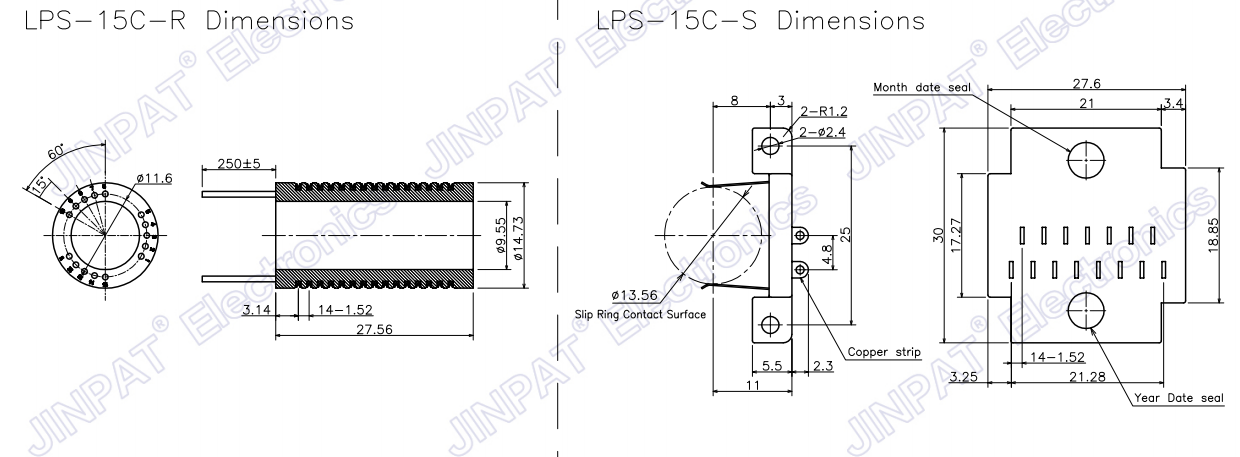

LPS-15C Outline Drawing
Product Advantage：
★ Extremely high design precision
★ Surface treatment adopts domestic high standard technology
★ Low contact resistance, long life, low torque, reliable operation.
★ Precious metal contact ensures long working life
★ Especially suitable for small rotating systems to transmit weak control signals
Applications:
★ Drones
★ Shadowless Surgical Lamps
★ Rotating Test Equipment
★ Robot
★ Radar Antenna
★ Exhibition/Display Equipment
★ Electronic Gantry
★ Electronics
