Featuring N-F/N-M interfaces (50Ω) and a frequency range of DC-18GHz, these cables offer exceptional phase stability and low signal loss. With an insulation resistance of 5000MΩ, they ensure reliable performance in demanding environments.
High Frequency Phase-stable Low Loss Coaxial Cable Series,
High Frequency Cable Auxiliaries and High Frequency Test Cable Auxiliaries are broadly applied in aerospace industry,
Electronic countermeasures system(ECM), high frequency anechoic system connection and 5G mobile communication, etc.
| Product specification | |||
| Interface Type | N-F/N-M(50Ω) | Body Materials | Stainless steel/Brass/Be-Cu/PTFE |
| Frequency range | DC-18GHz | Plating | Passivation/Gold |
| VSWR,Max | 1.3 | Durability | ≥500cycles |
| Insertion loss,Max | 0.98dB | Temperature range | ﹣40~+85°C |
| Voltage rating | 335V(rms) | RoHS 2002/95/EC | Compliant |
| Dielectric withstanding voltage | 500V | Coupling nut retention | ＞100lbs |
| Insulation resistance | 5000MΩ | Min.bending radius，dynamic | 110mm |

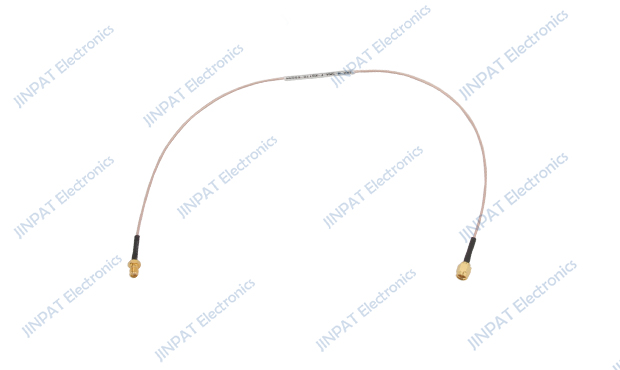

SMA-M-SMA-F-RG178-500mm Product appearance
SMA-M-SMA-F-RG316-500mm Product appearance

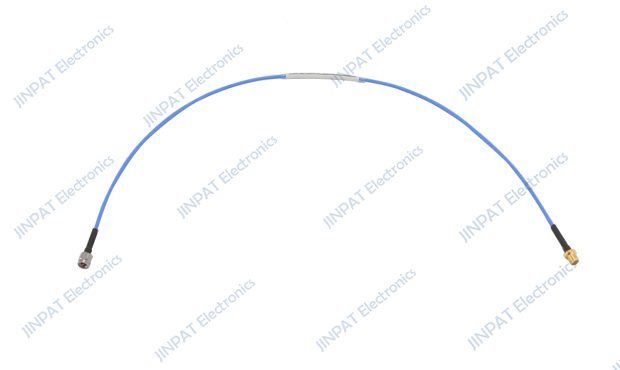

SMA-M-SMA-F-RG405-500mm Product appearance
