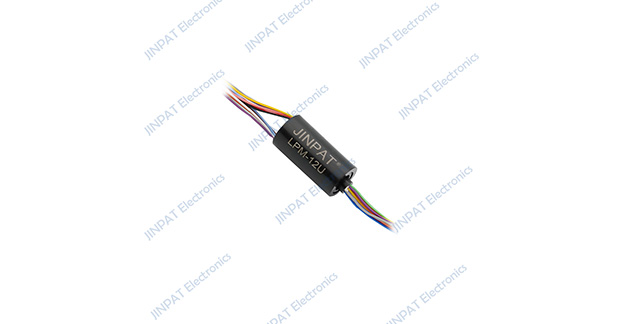

LPM-12U-0303 miniature slip ring O.D. and length φ12.5*25.5mm, channel 12, adopts domestic high standard surface treatment process, high design precision, compact appearance and easy installation. The contacts are made of gold-to-gold to ensure extremely low contact resistance and long working life, especially suitable for small and medium-sized systems, transmitting weak control signals. Slip Rings can be supplied in different electrical pathway combinations, such as video, control, sensing, sealing grade, industrial Ethernet etc.
If you have special requirements, please contact us immediately so that our sales engineers can recommend slip ring models or design customised slip rings for you.
Electronic & Electric |
Mechanical | |||
Circuits |
Total |
12 |
Working Speed |
0~6rpm |
Detail |
3×3A |
/ |
/ |
|
Rating Voltage |
24V AC/DC |
Contact Material |
Gold-to-Gold |
|
compressive strength |
2000VAC@50Hz/1sec no breakdown (without rubber case, wire test only) |
Housing Material |
Engineering plastic |
|
electrical insulation resistance |
≥10MΩ@100VDC（P/S） |
life span |
/ |
|
| Wire Specification | ø1.25- AWG24#UI Certified AWM1332 Teflon Wire | Wire length |
Rotor:200mm±5mm Stator: 150mm±5mm |
|
| Dynamic value of contact resistance |
≤35mΩ | |||
Environment |
Remarks | |||
Working Temperature |
-20°C~+60°C |
Lifespan |
/ |
|
Working Humidity |
60% RHthat amount or less |
Other |
/ |
|
IP |
IP40 |
/ |
||
Product Advantages：
★ Standardised and modular design
★ Variety of external dimensions to suit different customer needs.
★ Patented fibre brush plating technology ensures low electrical noise and low wear and tear.
★ Adopt the American JUN surface gold-plating technology to ensure long working life.
★ Up to 30 kinds of signal transmission such as USB, HDMI, SDI, Ethernet, RS422, etc. to meet 360° unrestricted rotation.
Product Features：
★ Transmits analogue and digital signals
★ Standard modules can be loaded to meet the power and signal transmission at the same time
★ Advanced fibre brush technology, maintenance-free, no lubricant required
★ Multi-point contact per circuit, low contact pressure, low contact wear
★ Special slot design for smooth rotation and low electrical noise
Scope of application：
★ Heads
★ Robotics
★ Medical Equipment
★ Radar Antenna
★ Rotary Table
★ Exhibition/Display Equipment
★ Electrical Test Equipment
★ Small Wind Turbines
★ CCTV security monitoring equipment
★ Manufacturing and processing control equipment
