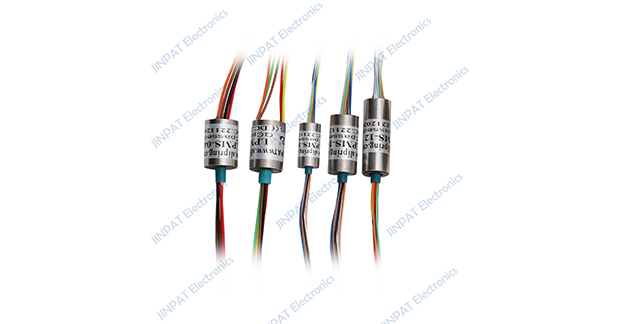

LPMS-10-1001 Ultra Miniature Slip Rings O.D. and length φ8.4mm-13.5mm, compact shape, high precision design, low contact resistance, low torque, reliable operation; this series of slip rings is used for high precision instruments and equipment, suitable for installation in extremely harsh environments in the space. Resistant to high and low temperatures, especially suitable for high quality transmission of weak signals such as sensing signals in harsh environments. Slip Rings with operating temperature of -20~+60°C can be customised.
If you have special requirements, please contact us immediately so that our sales engineers can recommend slip ring models or design customised slip rings for you.
Electronic & Electric |
Mechanical | |||
Circuits |
Total |
10 |
Working Speed |
0~300rpm |
Detail |
10×1A |
/ |
/ |
|
Rating Voltage |
0~7.4V AC/DC |
Contact Material |
Gold-to-Gold |
|
compressive strength |
≥100VAC@50Hz |
Housing Material |
Engineering plastic (black) |
|
electrical insulation resistance |
≥100MΩ@100VDC |
life span |
/ |
|
| Wire Specification | ø0.4- AWG32# Teflon wire | Wire length |
Rotor:45±5mm Stator: 35±5mm |
|
| Dynamic value of contact resistance |
≤35mΩ | |||
Environment |
Remarks | |||
Working Temperature |
-20°C~+60°C |
Lifespan |
/ |
|
Working Humidity |
≤60% RH |
Other |
/ |
|
IP |
IP40 |
/ |
||
Product Advantages:
★ Standardised and modular design
★ Low torque, <0.9g.m
★ Variety of external dimensions to suit different customer needs.
★ Patented fibre brush plating technology ensures low electrical noise and wear.
★Adoption of gold-plated surface treatment technology to ensure long working life
★ Up to 30 types of signal transmission such as USB, HDMI, SDI, Ethernet, RS422, etc. to meet 360° unrestricted rotation.
Product Features:
★ Transmits analogue and digital signals
★ Standard modules can be loaded to meet the power and signal transmission at the same time
★ Advanced fibre brush technology, maintenance-free, no lubricant required
★ Multi-point contact per circuit, low contact pressure, low contact wear
★ Special groove design for smooth rotation and low electrical noise
Scope of application：
★ Drones
★ Security monitoring equipment
★ Stage Lights, Electronic Gimbals
★ Robots
★ Radar
★ Exhibition/Display Equipment
★ Rotating workstations
★ Consumer electronics products
