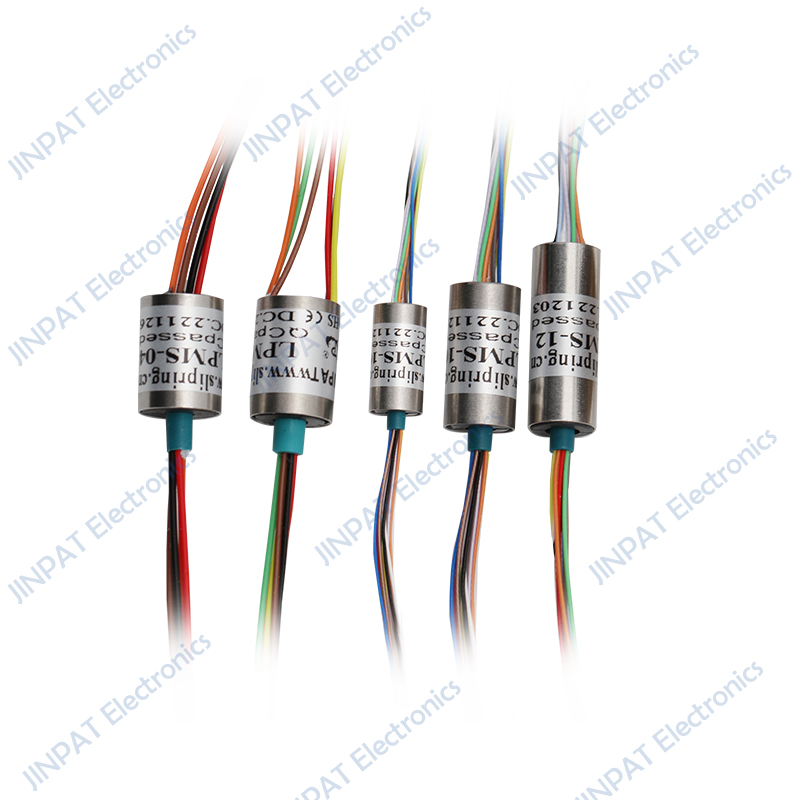

15-channel miniature slip ring, length less than φ7.3*19.08mm, channel 15, adopts domestic high standard surface treatment process, high design precision, compact appearance and easy installation. The contacts are made of precious metal with extremely low contact resistance and long working life, especially suitable for small and medium-sized systems to transmit weak control signals. Slip rings are available in different combinations of electrical pathways, such as video, control, sensing, sealing grades, industrial Ethernet, and more.
If you have special requirements, please contact us today so that our sales engineers can recommend a slip ring model or design a custom slip ring for you.
Electronic & Electric |
Mechanical | |||
Circuits |
Total |
15 |
Working Speed |
0~10rpm |
Detail |
15×1A |
/ |
/ |
|
Rating Voltage |
48V AC/DC |
Contact Material |
Gold-to-Gold |
|
compressive strength |
≥50VAC@50Hz |
Housing Material |
High temperature adhesive tape |
|
electrical insulation resistance |
≥5MΩ@50VDC |
life span |
/ |
|
| Wire Specification | ø0.4- AWG32# Teflon wire | Wire length |
Rotor:235±5mm Stator: 42±5mm |
|
| Dynamic value of contact resistance |
≤35mΩ | |||
Environment |
Remarks | |||
Working Temperature |
-20°C~+60°C |
Lifespan |
/ |
|
Working Humidity |
60% RHthat amount or less |
Other |
/ |
|
IP |
IP40 |
/ |
||
Product Advantages:
★ Standardised and modular design
★ Low torque, <0.9g.m
★ Variety of external dimensions to suit different customer needs.
★ Patented fibre brush plating technology ensures low electrical noise and wear.
★ Adoption of gold-plated surface treatment technology to ensure long working life
★ Up to 30 types of signal transmission such as USB, HDMI, SDI, Ethernet, RS422, etc. to meet 360° unrestricted rotation.
Product Features:
★ Transmits analogue and digital signals
★ Standard modules can be loaded to meet the power and signal transmission at the same time
★ Advanced fibre brush technology, maintenance-free, no lubricant required
★ Multi-point contact per circuit, low contact pressure, low contact wear
★ Special groove design for smooth rotation and low electrical noise
Scope of application：
★ Drones
★ Security monitoring equipment
★ Stage Lights, Electronic Gimbals
★ Robots
★ Radar
★ Exhibition/Display Equipment
★ Rotating workstations
★ Consumer electronics products
