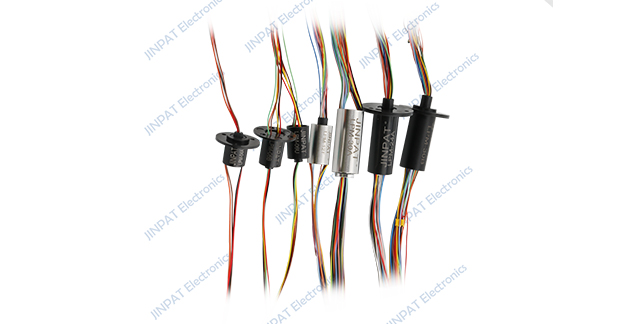

12-channel miniature slip ring, length φ12.5*25.2mm, channel 12, adopting domestic high standard surface treatment process, high design precision, compact appearance, easy installation. The contacts are made of precious metal with extremely low contact resistance and long working life, especially suitable for small and medium-sized systems to transmit weak control signals. Slip rings are available in different combinations of electrical pathways, such as video, control, sensing, sealing grades, industrial Ethernet, and more.
If you have special requirements, please contact us today so that our sales engineers can recommend a slip ring model or design a custom slip ring for you.
Electronic & Electric |
Mechanical | |||
Circuits |
Total |
12 |
Working Speed |
0~300rpm |
Detail |
1×1A/2×3A |
/ |
/ |
|
Rating Voltage |
0~24V AC/DC |
Contact Material |
Gold-to-Gold |
|
compressive strength |
≥100VAC@50Hz |
Housing Material |
Engineering plastics |
|
electrical insulation resistance |
≥10MΩ@100VDC |
life span |
/ |
|
| Wire Specification | ø0.9- AWG24# ø0.8- AWG28#Silver plated Teflon wire | Wire length |
Rotor: 70±5mm Stator: 70±5mm |
|
| Dynamic value of contact resistance |
≤35mΩ (running at 50 rpm) | |||
Environment |
Remarks | |||
Working Temperature |
-20°C~+60°C |
Lifespan |
/ |
|
Working Humidity |
60% RHthat amount or less |
Other |
/ |
|
IP |
IP40 |
/ |
||
Product Advantages:
★ Standardised and modular design
★ Variety of external dimensions to suit different customer needs.
★ Patented fibre brush plating technology ensures low electrical noise and low wear and tear.
★ Adopt the American JUN surface gold-plating technology to ensure long working life.
★ Meet the 360 ° unrestricted rotation of the USB, HDMI, SDI, Ethernet, RS422 and other up to 30 kinds of signal transmission
Product Features:
★ Transmission of analogue and digital signals.
★ Transmission of analogue and digital signals
★ Standard modules can be loaded to meet the power and signal transmission at the same time
★ Advanced fibre brush technology, maintenance-free, no lubricant required
★ Multi-point contact per channel, low contact pressure, low contact wear
★ Special slot design for smooth rotation and low electrical noise
Application Areas：
★ Medical Equipment
★ Radar Antenna
★ Rotary Table
★ Robot
★ Electrical Test Equipment
★ Small Wind Turbines
