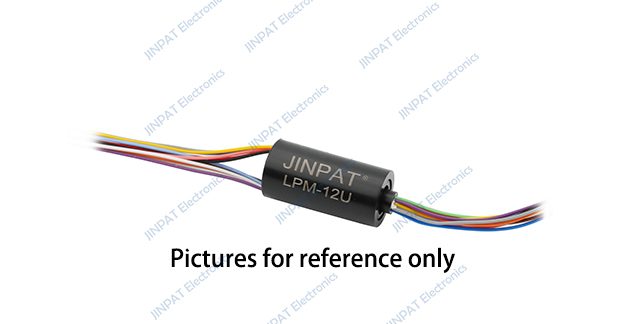

Hundred megabit Ethernet miniature slip ring and length φ12.5*25.5mm, channel 12, integrating one way Ethernet + 2 way Laser signal, adopting domestic high standard surface treatment process, high design precision, compact appearance, easy installation. The contacts are made of precious metal, ensuring extremely low contact resistance and long working life, especially suitable for small and medium-sized systems, transmitting weak control signals. Slip Rings can be supplied with different electrical pathway combinations, such as video, control, sensing, sealing grade, industrial Ethernet, etc.
If you have special requirements, please contact us immediately so that our sales engineers can recommend slip ring models or design customised slip rings for you.
Electronic & Electric |
Mechanical | |||
Circuits |
Total |
1 way Ethernet/2 way 2A 2 way Laser |
Working Speed |
0~300rpm |
Detail |
2×1A |
Eletrical Noise |
≤35mΩ |
|
Rating Voltage |
12V AC/DC |
Contact Material |
Precious Metals |
|
compressive strength |
Between the two roads≥500VAC@50Hz（p/S） |
Housing Material |
Aluminium Alloy |
|
electrical insulation resistance |
≥10MΩ@50VDC（p/s） |
Maximum torque |
≤25gf.cm |
|
| Wire Specification | ø0.65- AWG28# Teflon wire | Wire length |
Rotor: 250±5m Stator: 250±5mmm |
|
Environment |
Remarks | |||
Working Temperature |
-20°C~+90°C |
Lifespan |
/ |
|
Working Humidity |
≤60% RH |
Other |
/ |
|
IP |
/ |
/ |
||
Product Advantages:
★ Standardised and modular design
★ Variety of external dimensions to suit different customer needs.
★ Patented fibre brush plating technology ensures low electrical noise and low wear and tear.
★ Adopt the American JUN surface gold-plating technology to ensure long working life.
★ Meet the 360 ° unrestricted rotation of the USB, HDMI, SDI, Ethernet, RS422 and other up to 30 kinds of signal transmission
Product Features:
★ Transmission of analogue and digital signals.
★ Transmission of analogue and digital signals
★ Standard modules can be loaded to meet the power and signal transmission at the same time
★ Advanced fibre brush technology, maintenance-free, no lubricant required
★ Multi-point contact per channel, low contact pressure, low contact wear
★ Special slot design for smooth rotation and low electrical noise
Application Areas：
★ Medical Equipment
★ Radar Antenna
★ Rotary Table
★ Robot
★ Electrical Test Equipment
★ Small Wind Turbines
