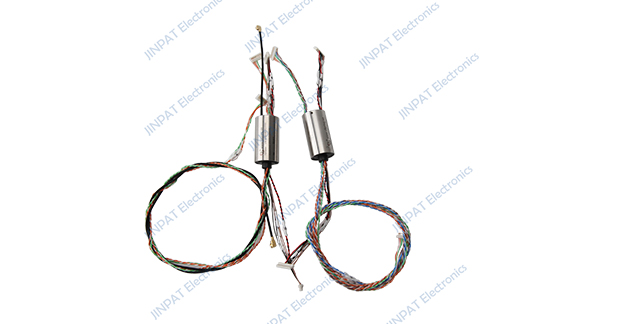

Gigabit Ethernet 2-way ultra-miniature slip ring OD and length φ12.5~23.5mm, channel 2, integrating a set of Gigabit Ethernet + 2-way signal + 2-way *3A, life expectancy of up to 3 million revolutions, adopting the domestic high standard surface treatment process, compact appearance, high design accuracy, low product contact resistance, low torque, reliable operation; this series of slip rings are used for high-precision instrumentation and equipment, and are suitable for installation in space Extremely harsh environment. Resistant to high and low temperatures, especially suitable for high quality transmission of weak signals such as sensing signals in harsh environments. Slip Rings with operating temperature -20~+80°C can be customised.
If you have special requirements, please contact us immediately so that our sales engineers can recommend slip ring models or design custom slip rings for you.
Electronic & Electric |
Mechanical | |||
Circuits |
Total |
1 Gigabit Ethernet + 2 signals + 2 *3A |
Working Speed |
0~50rpm |
Detail |
2×3A |
Eletrical Noise |
≤10mΩ |
|
Rating Voltage |
12VAC/DC |
Contact Material |
Gold to Gold |
|
Dielectric Strength |
≥100VAC@50Hz |
Housing Material |
Stainless steel/aluminium alloy |
|
Insulation Resistance |
≥100MΩ@100VDC |
Lead wire specification Stator |
Wire specification: AWG32# cross-silver Teflon |
|
Environment |
Remarks | |||
Working Temperature |
-20°C~+80°C |
Lifespan |
Approx. 3 million revolutions |
|
Working Humidity |
Below 60% RH |
Other |
/ |
|
IP |
IP40 |
/ |
||
Product Advantages：
★ Standardised and modular design
★ Low torque, <0.9g.m
★ Variety of external dimensions to suit different customer needs.
★ Patented fibre brush plating technology ensures low electrical noise and wear.
★ Adoption of gold-plated surface treatment technology to ensure long working life
★ Up to 30 types of signal transmission such as USB, HDMI, SDI, Ethernet, RS422, etc. to meet 360° unrestricted rotation.
Product Features:
★ Transmission of analogue and digital signals.
★ Transmission of analogue and digital signals
★ Standard modules can be loaded to meet the power and signal transmission at the same time
★ Advanced fibre brush technology, maintenance-free, no lubricant required
★ Multi-point contact per channel, low contact pressure, low contact wear
★ Special slot design for smooth rotation and low electrical noise
Classic Cases:
★ Drones
★ Security monitoring equipment
★ Stage Lights, Electronic Gimbals
★ Robots
★ Radar
★ Exhibition/Display Equipment
★ Rotating workstations
★ Consumer electronics products
