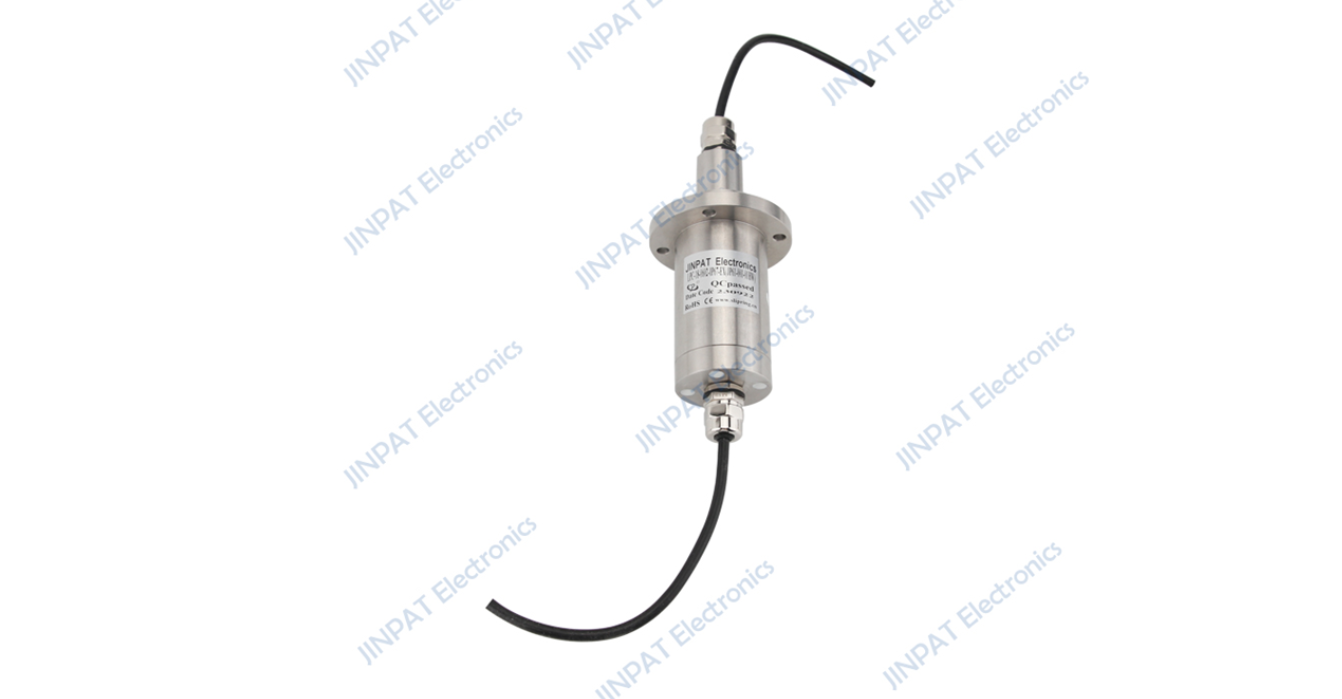

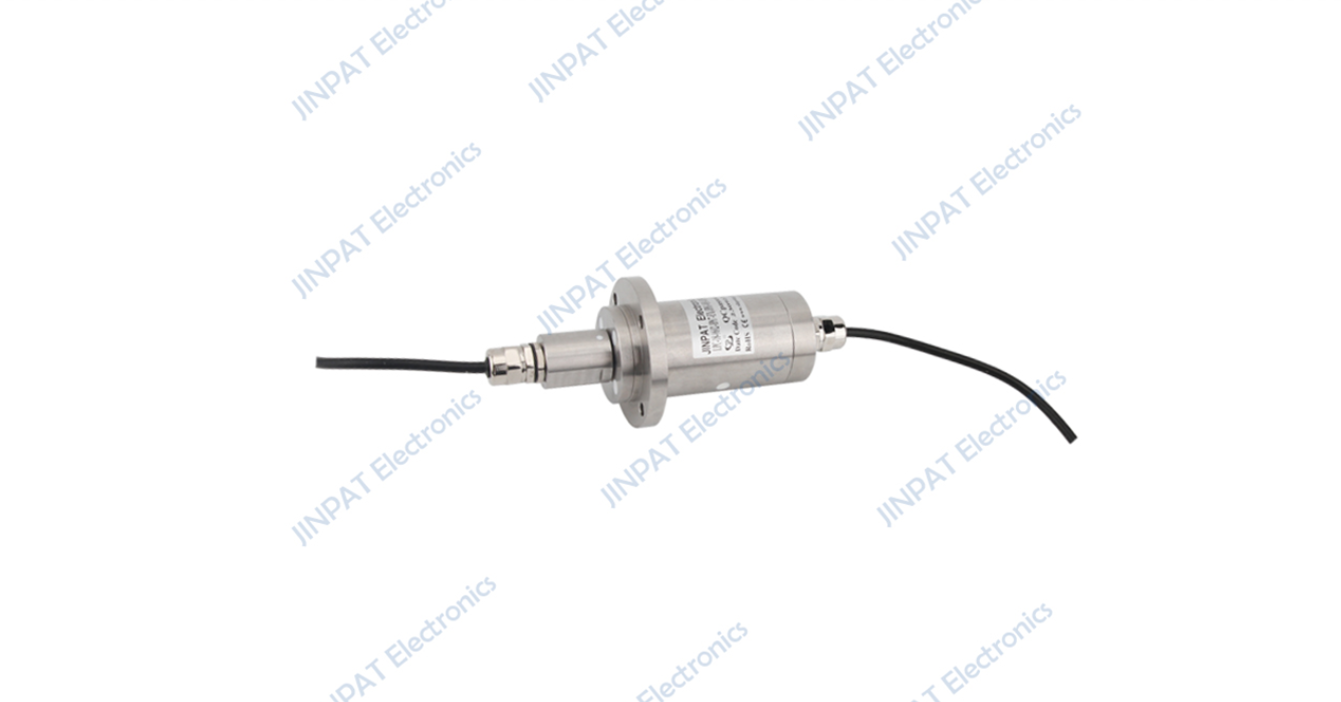

6-way 2A Cap Slip Ring, IP67, Ethernet Integration Available， 1-wayAnalog Signal, adopting domestic high standard surface treatment process, high design precision, compact appearance and easy installation. The contacts are gold-to-gold to ensure extremely low contact resistance and long working life, especially suitable for small and medium-sized systems, transmitting weak control signals, and can be supplied with different electrical pathway combinations, such as video, control, sensing, sealing grade, industrial Ethernet, etc.
If you have any special requirements, please contact us immediately so that our sales engineers can recommend the slip rings or design customised slip rings for you.
Electronic & Electric |
Mechanical | |||
Circuits |
Total |
6CKT |
Working Speed |
0~50rpm |
Detail |
6×2A |
Eletrical Noise |
≤35mΩ |
|
Rating Voltage |
0~24VAC/DC |
Contact Material |
Gold to Gold |
|
Dielectric Strength |
≥100VAC@50Hz |
Housing Material |
Stainless Steel |
|
Insulation Resistance |
≥10MΩ@100VDC |
Lead Wire Length |
Stator:250±5mm Rotor:250±5mm |
|
Environment |
Remarks | |||
Working Temperature |
-20°C~+60°C |
Application |
/ |
|
Working Humidity |
≤95%RH |
Other |
/ |
|
IP |
IP67 |
/ |
||
Advantages and features
★ Adopting the domestic leading JUN industrial grade high standard surface treatment technology, the internal structure is more precise and compact
★ Adopting gold-to-gold contact design to ensure the stability and service life of the equipment, which is mainly used in civil and commercial fields.
★ Smooth running, compact structure, low torque, compatible with data bus protocol.
★ Coloured wires are used on both sides of the stator and rotor wires to simplify the circuit connection.
★ Conductive ring with 90-degree angle V-groove design for smooth rotation, low torque and low electrical noise.
Scope of application
★ Heads
★ Robotics
★ Medical Equipment
★ Radar Antenna
★ Rotary Table
★ Exhibition/Display Equipment
★ Electrical Test Equipment
★ Small Wind Turbines
★ CCTV security monitoring equipment
★ Manufacturing and processing control equipment
