LPMS-08 series super miniature cap type conductive slip ring OD and length φ5.5mm-13.5mm, small shape, high precision design, low contact resistance, low torque, reliable operation; this series of slip rings for high precision instruments and equipment, suitable for installation in extremely harsh space environment. Resistant to high and low temperatures, especially suitable for high quality transmission of weak signals such as sensing signals in harsh environments. Slip ring operating temperature -40~+200°C can be customised.
If you have special requirements, please contact us immediately so that our sales engineers can recommend slip ring models or design customised slip rings for you.
Electronic & Electric |
Mechanical | |||
Circuits |
Total |
8CKT |
Working Speed |
0~300rpm |
Detail |
8×1A |
Eletrical Noise |
≤35mΩ |
|
Rating Voltage |
0~48VAC/DC |
Contact Material |
Gold to Gold |
|
Dielectric Strength |
≥100VAC@50Hz |
Housing Material |
Engineering plastics |
|
Insulation Resistance |
≥100MΩ@100VDC |
Lead Wire Length |
Stator:250±5mm Rotor:250±5mm |
|
Environment |
Remarks | |||
Working Temperature |
-20°C~+60°C |
Application |
/ |
|
Working Humidity |
≤60%RH |
Other |
/ |
|
IP |
IP40 |
/ |
||

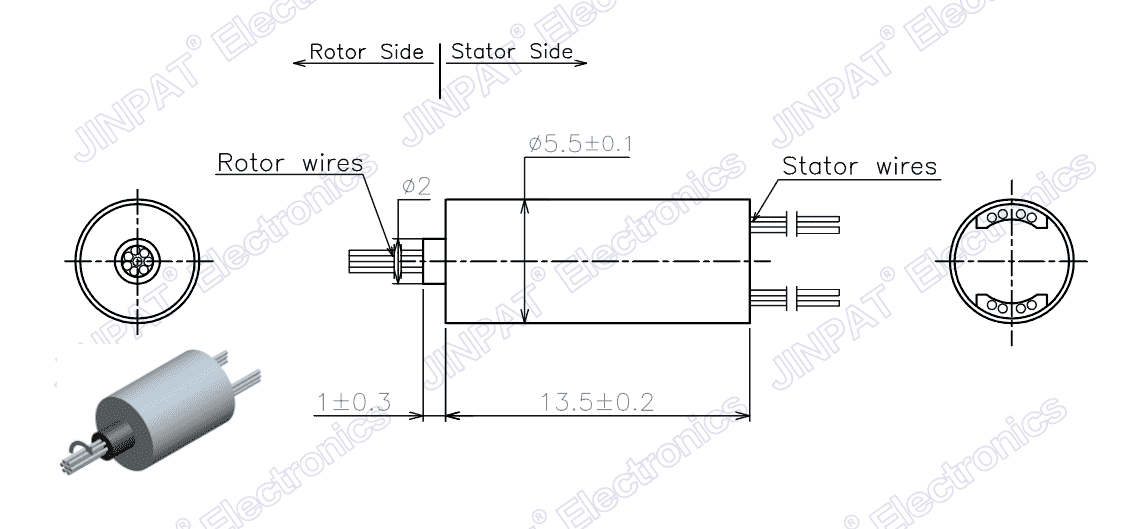

LPMS-08 Outline Drawing

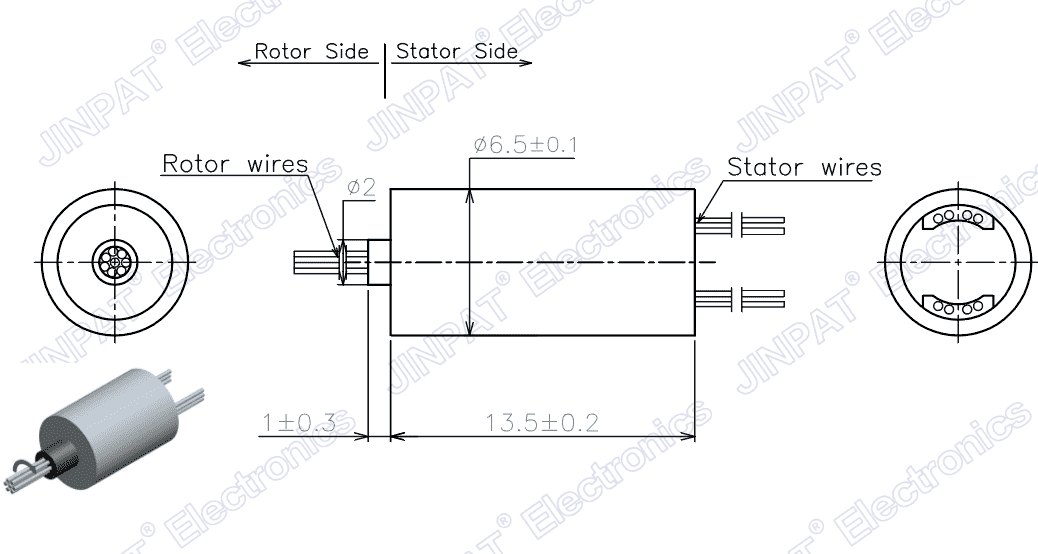

LPMS-08YL Outline Drawing

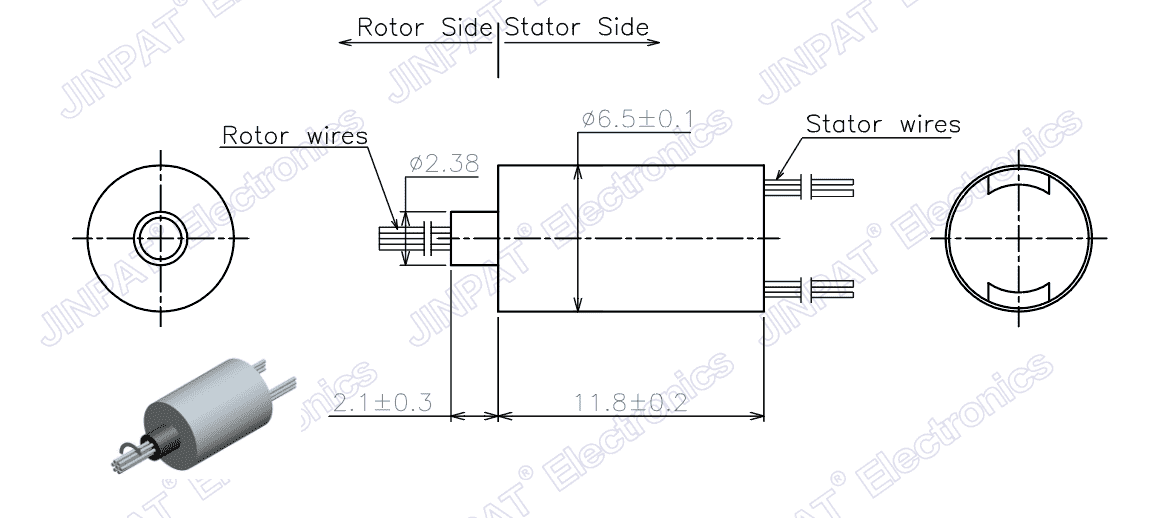

LPMS-08YLP Outline Drawing

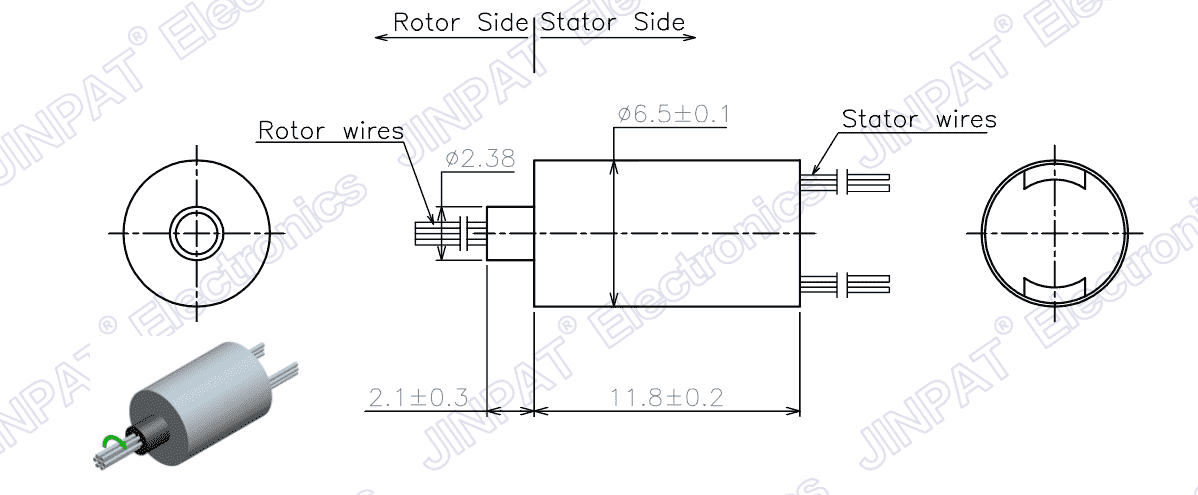

LPMS-08YP Outline Drawing
Product Advantages：
★ Standardised and modular design
★ Variety of external dimensions to suit different customer needs.
★ Patented fibre brush plating technology ensures low electrical noise and low wear and tear.
★ Adopt the American JUN surface gold-plating technology to ensure long working life.
★ Up to 30 kinds of signal transmission such as USB, HDMI, SDI, Ethernet, RS422, etc. to meet 360° unrestricted rotation.
Product Features：
★ Transmits analogue and digital signals
★ Standard modules can be loaded to meet the power and signal transmission at the same time
★ Advanced fibre brush technology, maintenance-free, no lubricant required
★ Multi-point contact per circuit, low contact pressure, low contact wear
★ Special slot design for smooth rotation and low electrical noise
Scope of application：
★ Heads
★ Robotics
★ Medical Equipment
★ Radar Antenna
★ Rotary Table
★ Exhibition/Display Equipment
★ Electrical Test Equipment
★ Small Wind Turbines
★ CCTV security monitoring equipment
★ Manufacturing and processing control equipment
