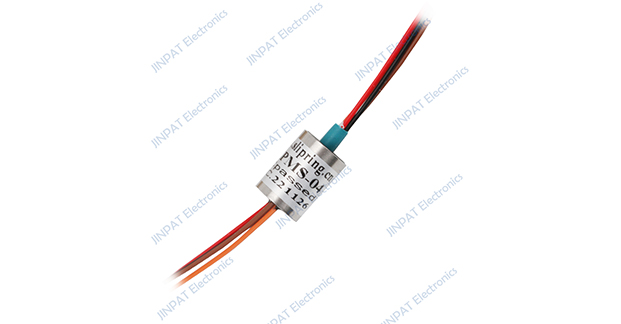

LPMS-04 series ultra-micro miniature cap type conductive slip ring OD 7.9mm-8.5mm, small form factor, high precision design, low contact resistance, low torque, reliable operation; this series of slip ring is used for high-precision instrumentation and equipment, suitable for installation in an extremely harsh space environment. Resistant to high and low temperatures, especially suitable for high quality transmission of weak signals such as sensing signals in harsh environments. Slip ring operating temperature -40~+200°C can be customised.
If you have special requirements, please contact us immediately so that our sales engineers can recommend slip ring models or design customised slip rings for you.
Electronic & Electric |
Mechanical | |||
Circuits |
Total |
4 CKT |
Working Speed |
0~300rpm |
Detail |
4×1A |
Eletrical Noise |
≤35mΩ |
|
Rating Voltage |
0~48VAC/DC |
Contact Material |
Gold to Gold |
|
Dielectric Strength |
≥100VAC@50Hz |
Housing Material |
stainless steels |
|
Insulation Resistance |
≥100MΩ@100VDC |
Lead Wire Length |
Stator:250±5mm Rotor:250±5mm |
|
Environment |
Remarks | |||
Working Temperature |
-20°C~+60°C |
Application |
/ |
|
Working Humidity |
≤60%RH |
Other |
/ |
|
IP |
IP40 |
/ |
||

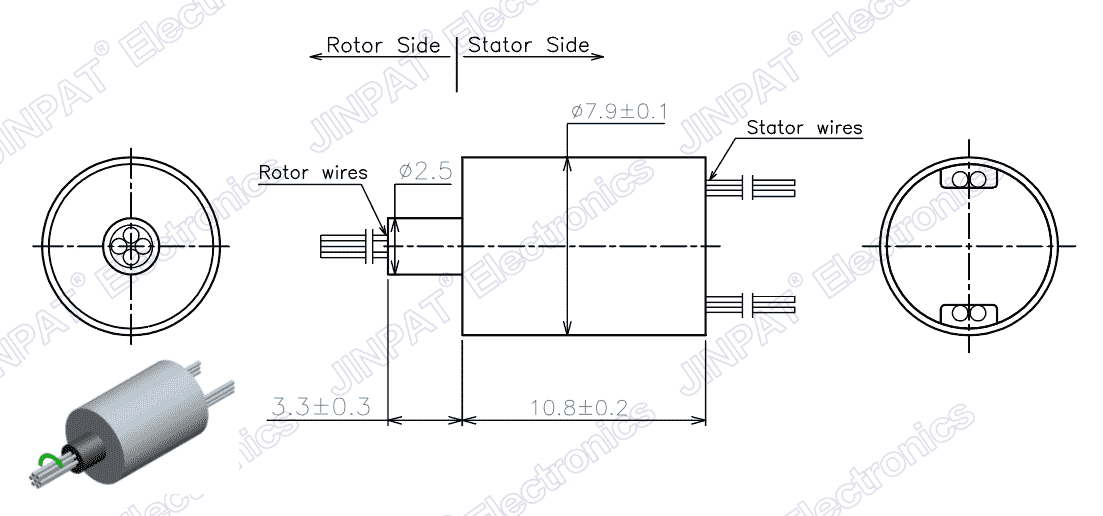

LPMS-04 Outline Drawing

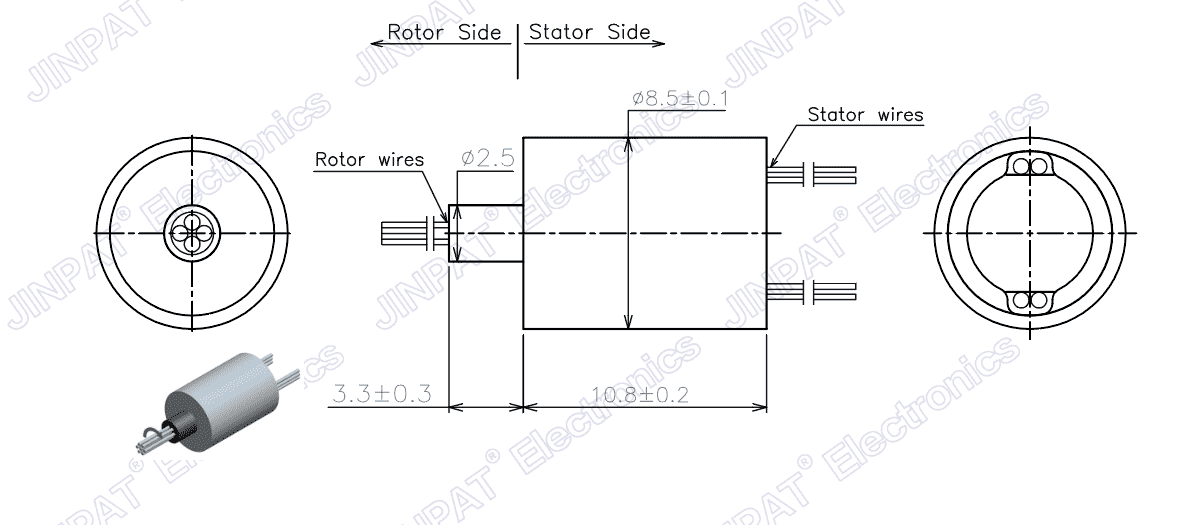

LPMS-04YP Outline Drawing
Product Advantages:
★ Standardised and modular design
★ Low torque, <0.9g.m
★ Variety of external dimensions to suit different customer needs.
★ Patented fibre brush plating technology ensures low electrical noise and wear.
★ Adoption of gold-plated surface treatment technology to ensure long working life
★ Up to 30 types of signal transmission such as USB, HDMI, SDI, Ethernet, RS422, etc. to meet 360° unrestricted rotation.
Product Features:
★ Transmits analogue and digital signals
★ Standard modules can be loaded to meet the power and signal transmission at the same time
★ Advanced fibre brush technology, maintenance-free, no lubricant required
★ Multi-point contact per circuit, low contact pressure, low contact wear
★ Special groove design for smooth rotation and low electrical noise
Scope of application：
★ Drones
★ Security monitoring equipment
★ Stage Lights, Electronic Gimbals
★ Robots
★ Radar
★ Exhibition/Display Equipment
★ Rotating workstations
★ Consumer electronics products
