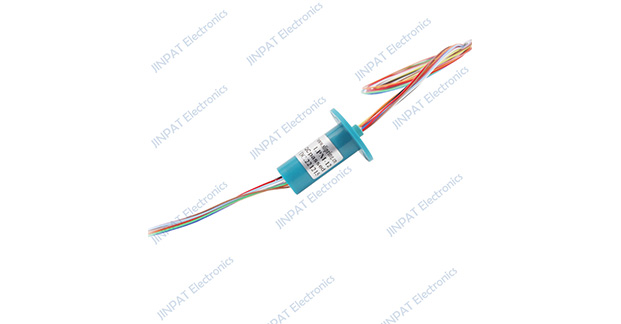

LPM-12 series cap slip rings are 20.2~30mm in length with 12 channels, adopting domestic high standard surface treatment process, high design precision, compact appearance and easy installation. The contacts are made of gold to gold to ensure extremely low contact resistance and long working life, especially suitable for small and medium-sized systems to transmit weak control signals. Slip Rings can be supplied with different electrical pathway combinations, such as video, control, sensing, sealing grade, industrial Ethernet, etc.
If you have special requirements, please contact us immediately so that our sales engineers can recommend slip ring models or design customised slip rings for you.
Electronic & Electric |
Mechanical | |||
Circuits |
Total |
12 CKT |
Working Speed |
0~300rpm |
Detail |
12×2A |
Eletrical Noise |
≤35mΩ |
|
Rating Voltage |
0~110VAC/DC |
Contact Material |
Gold to Gold |
|
Dielectric Strength |
≥300VAC@50Hz |
Housing Material |
Engineering plastics |
|
Insulation Resistance |
≥500MΩ@300VDC |
Lead Wire Length |
Stator:250±5mm Rotor:250±5mm |
|
Environment |
Remarks | |||
Working Temperature |
-20°C~+60°C |
Application |
/ |
|
Working Humidity |
≤60%RH |
Other |
/ |
|
IP |
IP40 |
/ |

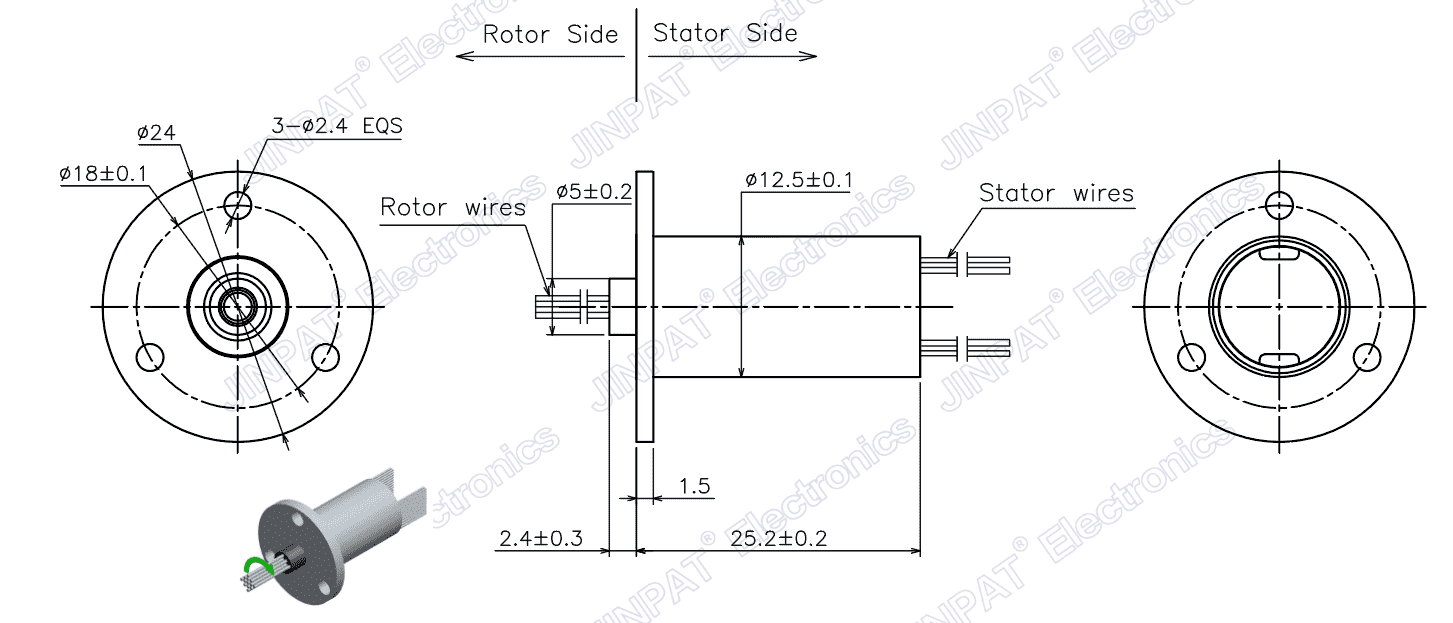

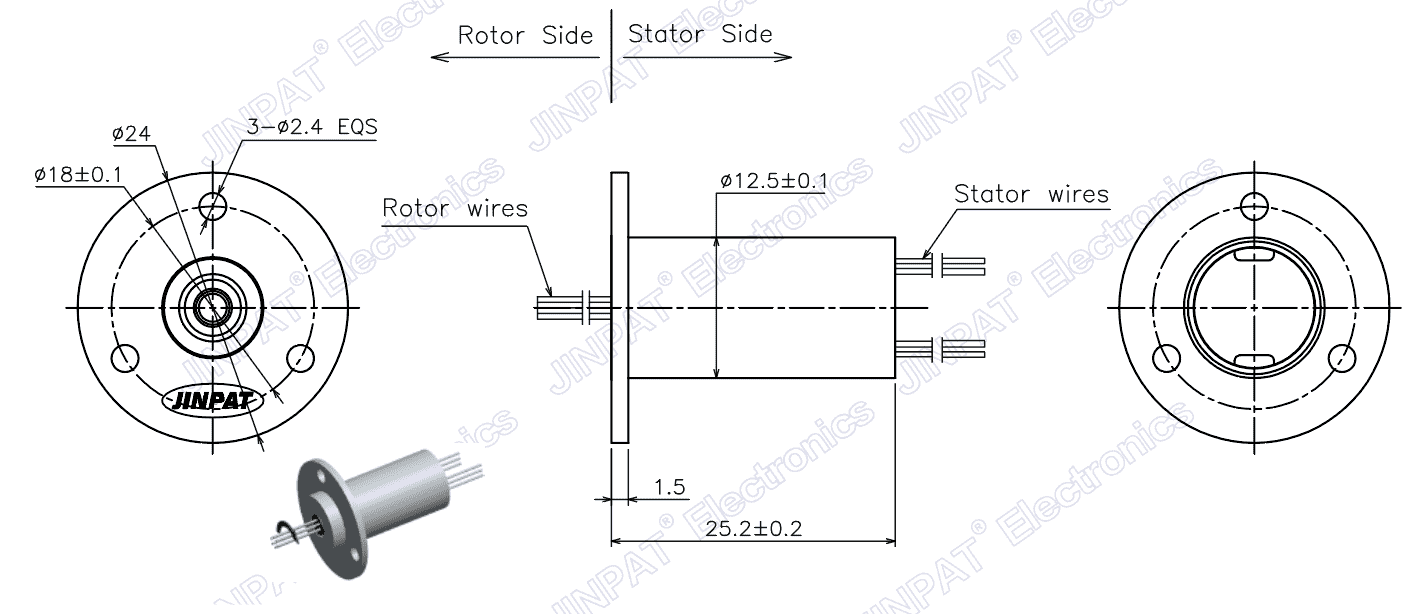

LPM-12 Outline Drawing

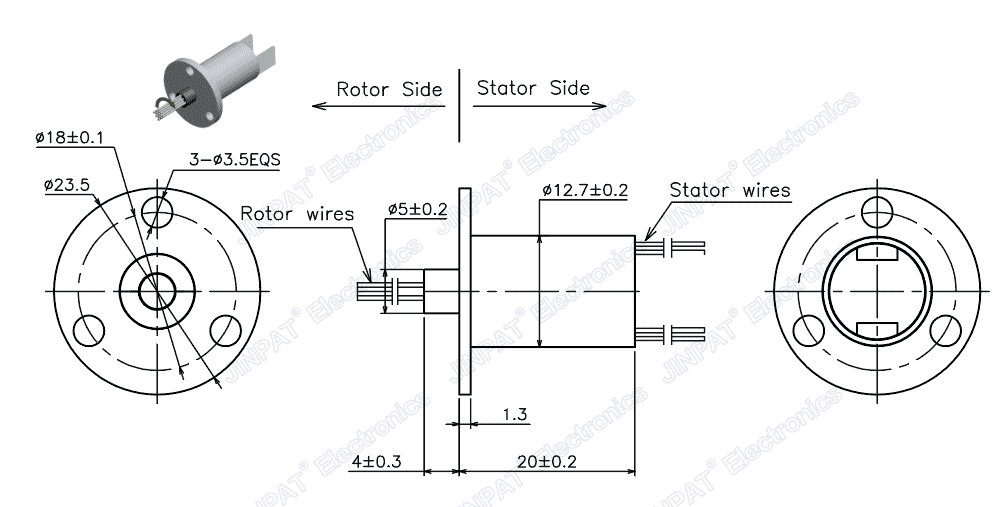

LPM-12YB Outline Drawing

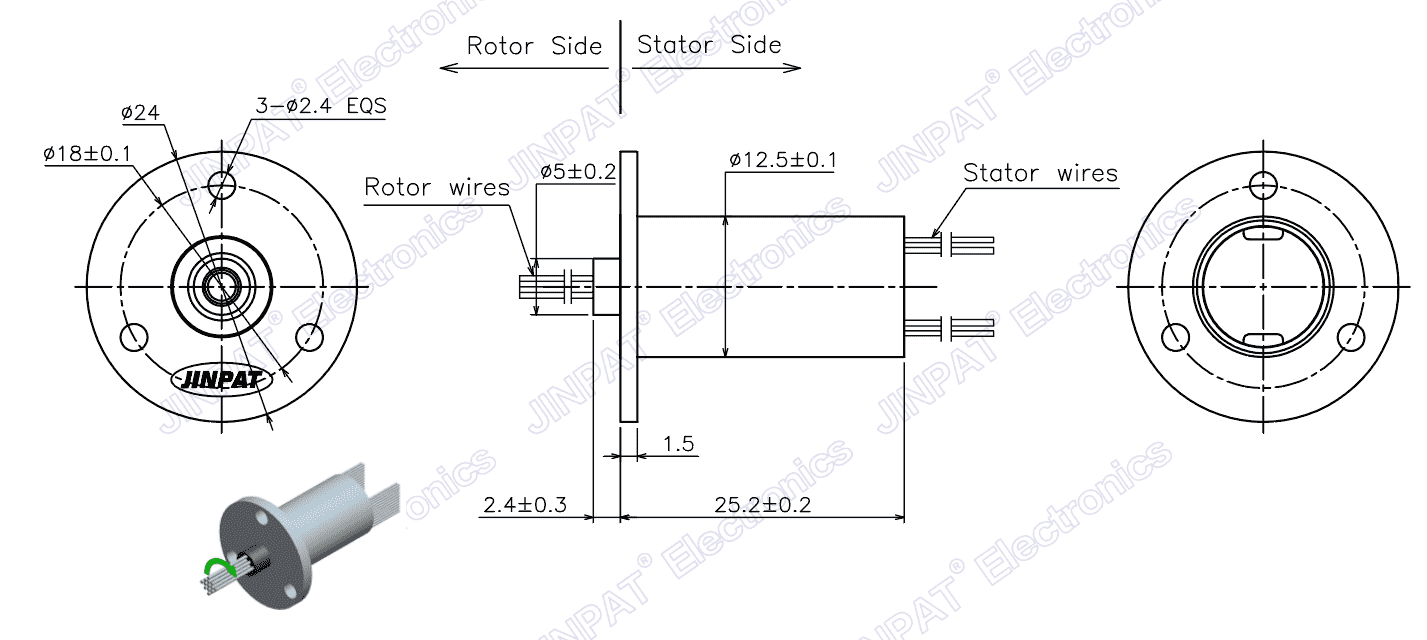

LPM-12YD Outline Drawing

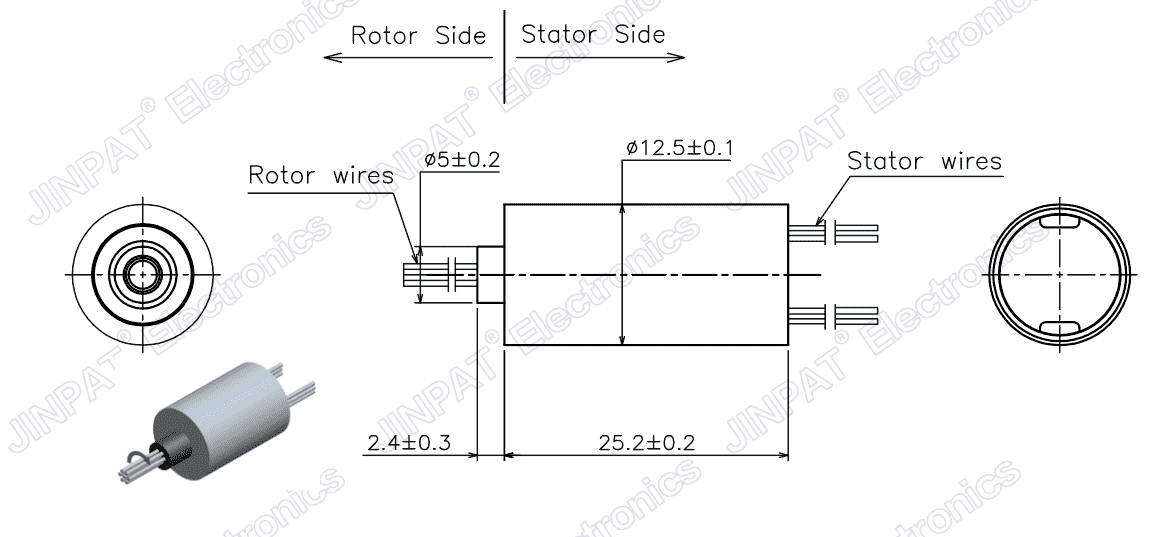

LPM-12YJ Outline Drawing

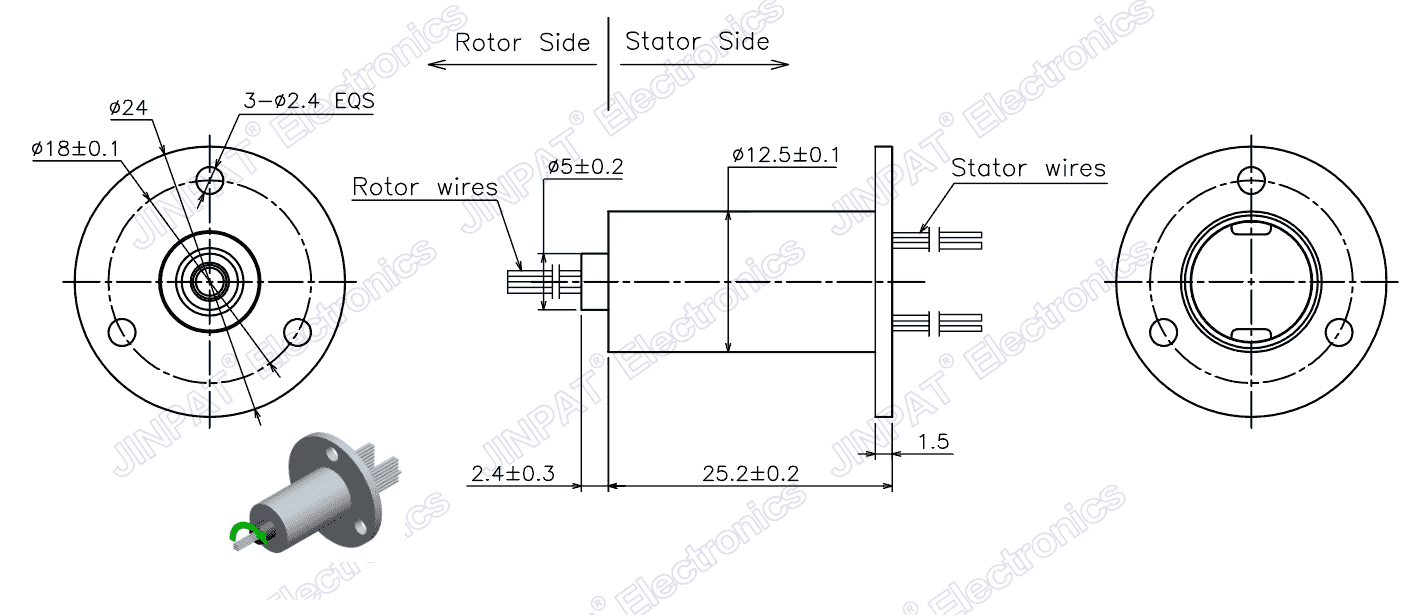

LPM-12YL Outline Drawing

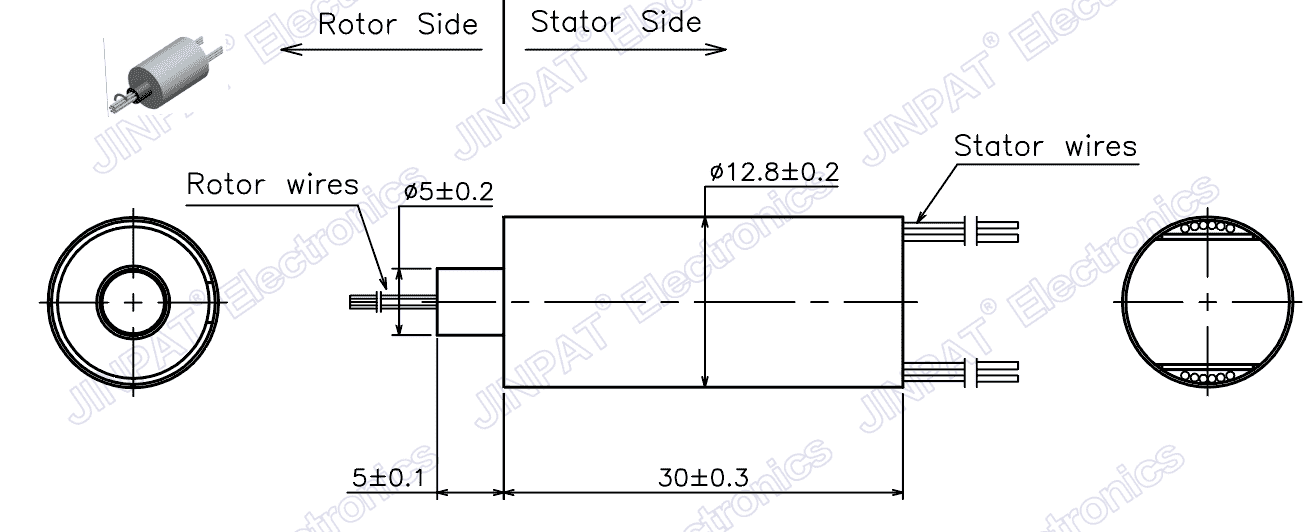

LPM-12YS Outline Drawing

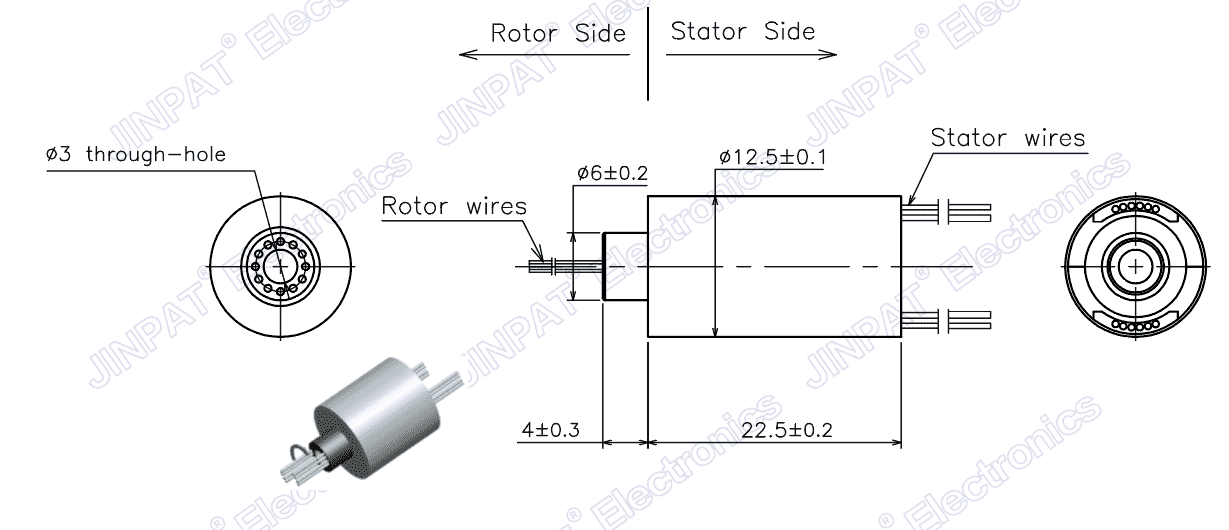

LPM-12YT Outline Drawing
LPM-12YU Outline Drawing
Product Advantages:
★ Standardised and modular design
★ Variety of external dimensions to suit different customer needs.
★ Patented fibre brush plating technology ensures low electrical noise and low wear and tear.
★ Adopt the American JUN surface gold-plating technology to ensure long working life.
★ Up to 30 kinds of signal transmission such as USB, HDMI, SDI, Ethernet, RS422, etc. to meet 360° unrestricted rotation.
Product Features:
★ Transmits analogue and digital signals
★ Standard modules can be loaded to meet the power and signal transmission at the same time
★ Advanced fibre brush technology, maintenance-free, no lubricant required
★ Multi-point contact per circuit, low contact pressure, low contact wear
★ Special slot design for smooth rotation and low electrical noise
Scope of application:
★ Heads
★ Robotics
★ Medical Equipment
★ Radar Antenna
★ Rotary Table
★ Exhibition/Display Equipment
★ Electrical Test Equipment
★ Small Wind Turbines
★ CCTV security monitoring equipment
★ Manufacturing and processing control equipment
