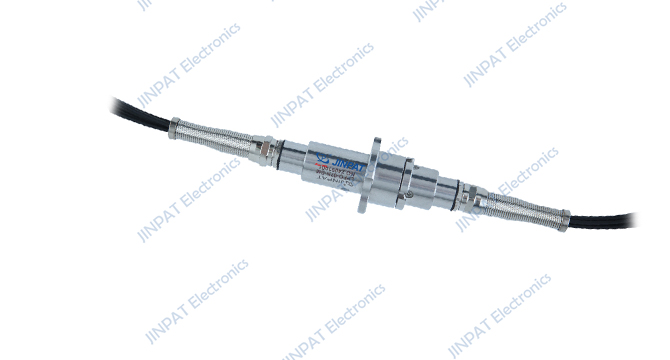

Built to withstand the harshest conditions, the LPFO fiber optic slip ring is engineered for durability and reliability. Its robust construction, combined with advanced sealing technology, ensures optimal performance in demanding environments, from extreme temperatures to dusty and wet conditions.
This is a groundbreaking fiber optic slip ring designed to handle the most demanding data transmission requirements. With its exceptional capacity to transmit up to 50 channels at speeds exceeding 100 Gbit/s, the LPFO is the ideal solution for applications that demand unparalleled performance and reliability.
Our LPFO fiber optic slip ring offers unparalleled versatility, available in a wide range of packaging options and configurations to suit your specific needs. With its exceptional optical performance, including ultra-low insertion loss and high return loss, the LPFO ensures reliable and efficient data transmission in even the most challenging environments.
| Specifications | |||
| Fiber types |
SM(9/125um) MM(50/125um or 62.6/125um) |
Jacket types | 2.0mm/armor |
| Channel number | 4 | Connector types | FC/SC/ST/LC(PC or APC) |
| Wavelength range |
SM：1310-1550nm MM：850-1300nm |
Estimated life cycle | ＞100 million revolutions |
| Insertion loss | ＜4dB | Vibration | MIL-STD-167-1A |
| Insertion loss ripple | ＜2dB | Mechanical shock | MIL-STD-810G |
| Return loss |
SM:≥40dB MM:≥25dB |
IP rating | IP65 or IP67 |
| Crosstalk | ≥50dB | Storage temperature | -55~+85℃ |
| Max Optical power | 23dBm | Package style | Pigtails on both ends |
| Working temperature |
-20~+65℃(Industrial grade) -45～+75℃ (Military grade) |
Weight, approx | 200g（No tail cable andconnection included） |
| Maximum speed | 300rpm | ||

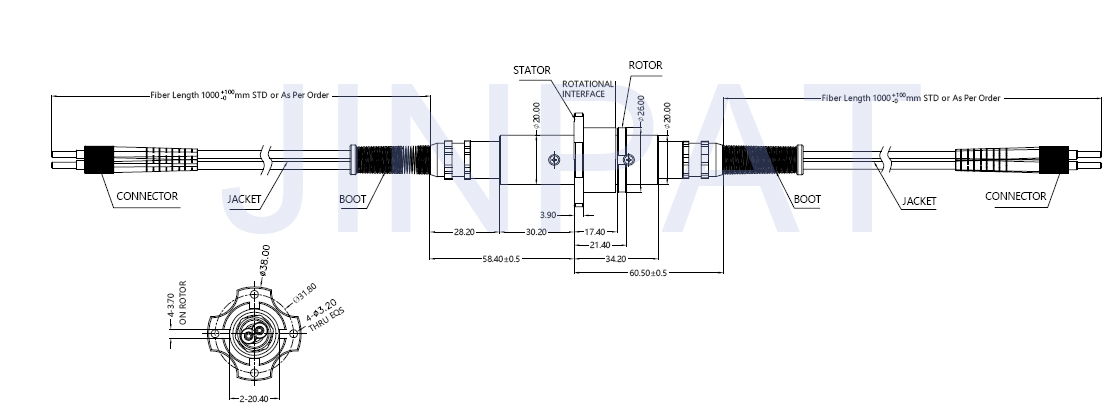

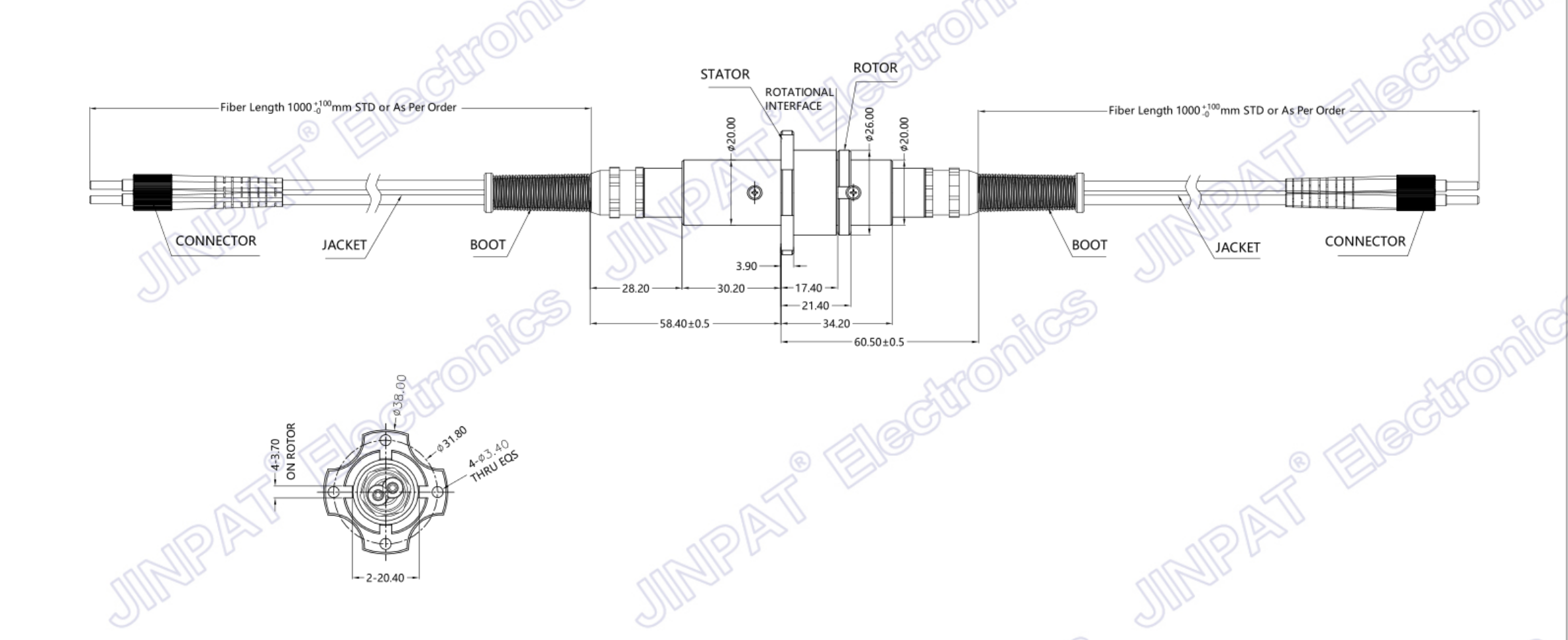

LPFO-04N-A Product Outline Diagram
Advantages and features:
◆ No contact and friction, long life, up to 10 million rpm (more than 100 million rpm for signal channel )
◆ Can combine with multiple signals such as video, series, and Ethernet signal, etc.
◆ Use optical fiber to transmit information, no leakage, no electromagnetic interference; can transmit tens of hundreds of kilometers of networking applications over long distances
◆ The transmission bandwidth is much larger than the electrical connector, and it can be used to double the bandwidth with the wavelength diision multiplexer.
◆ Small in volume and light in weight that is easy with electric slip ring, and system is easy to upgrade and сhange
◆ Providing the word's smallest single-channel fiber optic rotary ioint, as well as double-channels, four-channels ten-channel or even more channel for your option
◆ Providing photoelectric integrated rotary joint
Application Areas：
◆ Robotics
◆ Mlaterial conveying system
◆ Rotating turret on the vehicle
◆ Rermote control systemn
◆ Radar system
◆ Offshore and marine system
◆ High speed video, digital, analog signal transmission and control of optic fiber sensor revolving table
◆ Medical system
◆ Video surveillance system
◆ National or international security systems
◆ Subsea operating systerns
