LPKS055-0203-02S-U2

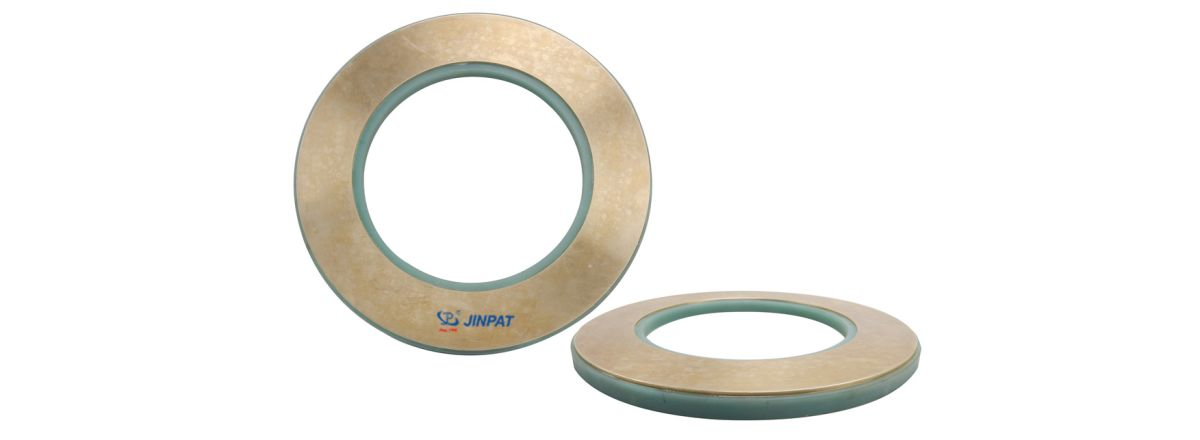

JINPAT Pancake slip ring is designed with PCB. Low current and signal transmission adopts gold-to-gold multi-contact structure. The thinnest thickness can reach 6mm, and the maximum size can reach 600mm in outer diameter. The current transmission of 30A or above adopts copper-graphite structure with excellent lubrication performance, and the thickness can reach 20mm. It has high reliability and has been maturely used in various military fields in my country. It is mainly manifested in high manufacturing precision, low noise, long life, compact structure, stable performance, reliable use, etc. The main technical indicators have reached the advanced level of foreign counterparts and are in a leading position in China.

With the development of industrial technology, many industrial manufacturing industries have always yearned for conductive slip rings with thin thickness, light weight and small size. Due to the limitations of internal structure and special components, thickness has always been a difficult problem.

LPKS055-0402-U2 Outline Drawing
