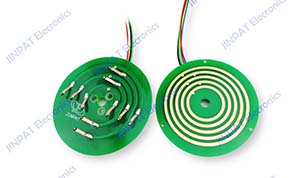

JINPAT's LPKS019-0905 Pancake Slip Ring, a compact and efficient rotary connector designed for limited axial space. With a through-hole diameter of 19mm and 9 channels rated at 5A, it’s ideal for automation equipment and robots. The advanced light contact technology ensures ultra-long service life and maintenance-free operation. The concentric ring design saves significant height space, offering a reliable solution for space-constrained applications.
Electronic & Electric |
Mechanical | |||
Circuits |
Total |
9 CKT |
Working Speed |
0~100rpm |
Detail |
9×5A |
Inner Diameter |
∅19mm |
|
Rating Voltage |
240V |
Contact Material |
Precious Metal |
|
Dielectric Strength |
300VAC@50Hz |
Housing Material |
FR-4 |
|
Insulation Resistance |
≥300MΩ@300VDC |
Lead Wire Length |
Stator:300mm Rotor:300mm |
|
Environment |
Remarks | |||
Working Temperature |
-20°C~+60°C |
Application |
/ |
|
Working Humidity |
≤60%RH |
Other |
/ |
|
IP |
/ |
Note: "P" stands for power, "S" stands for signal. |
||
