A Large Volume Series Slip Ring is an electromechanical device specifically designed to transmit power, electrical signals, and data across a rotating interface, capable of handling a high number of circuits. This series of slip rings is engineered to meet the needs of applications requiring the transmission of multiple channels simultaneously while maintaining reliable performance under continuous rotation and demanding environmental conditions.
Large Volume Series Slip Rings are primarily customized to meet specific functional requirements due to their complexity. With nearly 30 years of development, JINPAT has accumulated extensive R&D experience and a broad customer base, enabling the mass production of many Large Volume Series Slip Ring products.

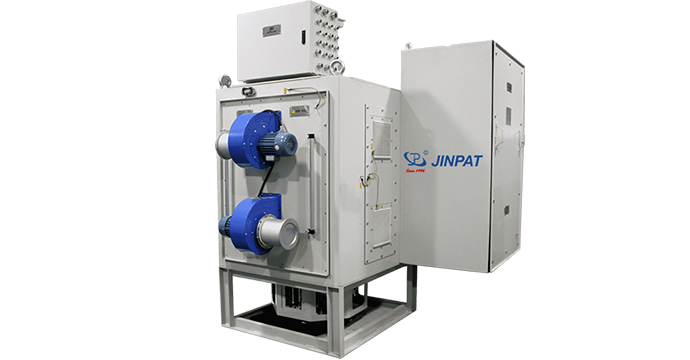

This is JINPAT's latest slip ring for podded propeller. This custom slip ring allows integrated transmission of power, signals, liquid and gas.
With case design and special housing, the slip ring demonstrates fine resistance against salt spray, oil mist and corrosion, etc. Therefore,JINPAT podded propeller slip ring is able to provide reliable and stable service to the podded propeller under complex applied environment.
Electronic & Electric |
Mechanical | |||
| Circuits | Total | 54CKT |
Working Speed |
0~2RPM |
| Detail | 5*1000A+1*PE+50*signal |
A hole diameter |
/ |
|
Rating Voltage |
690VAC/220VAC/24VDC | Contact Material |
High-end Copper Graphite /Precious Metal |
|
Dielectric Strength |
2500VAC@50Hz(P) |
Housing |
Q235 Spray Coating(Color to be determined) |
|
Insulation Resistance |
≥500MΩ@1000VDC(P) |
Installation |
Vertical Installation |
|
Environment |
Remarks | |||
Working Temperature |
-20°C~+45°C |
Application |
Ship Podded Propeller |
|
Working Humidity |
≥95%RH |
|||
IP |
IP65(without ventilator) |
Other |
/ | |
For more details of this slip ring product, please contact JINPAT.
We will bring you a satisfactory custom solution!
Features:
◆ High Circuit Capacity:
Number of Circuits: 54CKT,offering extensive connectivity for various power and signal requirements
◆Superior Electrical Specifications:
Voltage: Supports 690VAC, 220VAC, and 24VDC, suitable for diverse operational needs.
◆Current:
Handles up to 1000A, providing robust power transmission capabilities.
◆Integrated Transmission:
Comprehensive Solution: Allows for the integrated transmission of power, signals, liquid, and gas, enhancing the functionality of podded propellers.
Advantages:
◆Durable Design:
Case Design and Special Housing: Offers excellent resistance against salt spray, oil mist, and corrosion, ensuring long-term reliability and stability
◆Reliable Performance:
Designed to deliver consistent and dependable service in complex and harsh marine environments, making it an ideal choice for podded propeller applications
