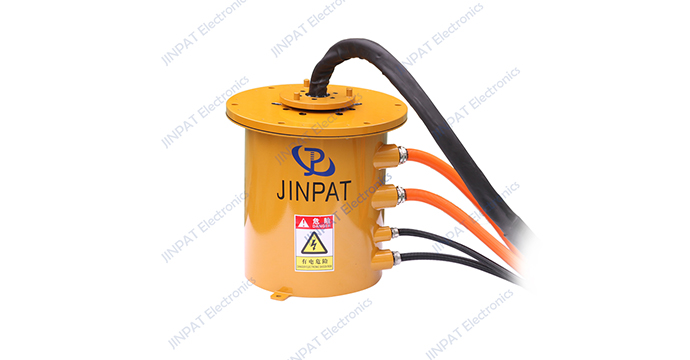

LPA000-02600-0440-12S Large Volume Series Slip Ring, engineered for construction machinery, specifically cranes. This slip ring is designed to provide reliable power and signal transmission in the demanding environments typical of construction sites. With its robust design and high-quality materials, it ensures optimal performance and longevity.
Features
Circuit Capacity:
Number of Circuits: 18, providing essential connectivity for power and signal needs in construction machinery.
Electrical Insulation:
Insulation Resistance:
Power Ring: 500MΩ@1000VDC, ensuring high insulation and safety.
Signal Ring: 300MΩ@300VDC, maintaining reliable signal integrity.
Premium Contact Materials:
Contact Material: Utilizes high-end copper carbon brushes and precious metals, ensuring excellent conductivity, durability, and low maintenance.
Robust Design:
Specifically designed for cranes used in construction, providing durable and reliable operation even in harsh environments.
Versatile Application:
Suitable for various construction machinery applications, offering a versatile solution for complex power and signal transmission requirements.
The LPA000-02600-0440-12S slip ring is the ideal choice for construction machinery, providing a reliable, high-performance solution that ensures seamless power and signal transmission in challenging conditions.
Electronic & Electric |
Mechanical |
|||
| Circuits | Total | 18CKT |
Working Speed |
0~10rpm |
| Detail | 2*600A+4*40A+9*signal+2*CAN bus signal |
A hole diameter |
/ |
|
Rating Voltage |
450V~750VDC/24V~32VDC | Contact Material |
High-end Copper Graphite /Precious Metal |
|
Dielectric Strength |
power ring: between circuits ≥2500V@50Hz |
Housing |
Q235 Spray Coating(yellow) |
|
Insulation Resistance |
power ring: 500MΩ1000VDC |
Lead Wire Length |
Rotor Working Pressure: 1.8m~7m Stator WorkingPressure: 3.5m~5m |
|
Environment |
Remarks |
|||
Working Temperature |
-30°C~+80°C |
Application |
Construction Machinery- Crane |
|
Working Humidity |
≤95%RH |
|||
IP |
IP67(Stator Faces Up) |
Other |
/ | |
For more customized solutions, please feel free to contact us at any time!
