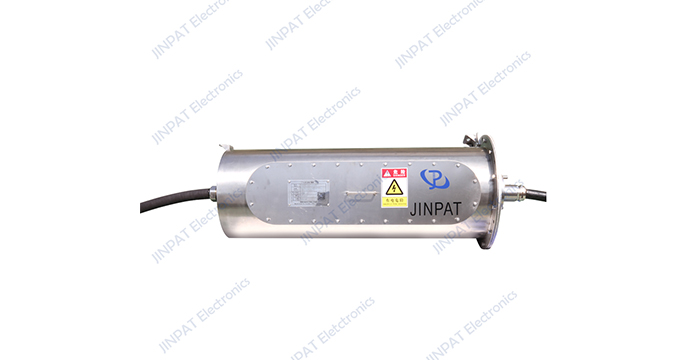

The LPA000-0780-0740-0915PE-0705PE-08S-FO12 Large Volume Series Slip Ring, a state-of-the-art solution designed to meet the high current demands of industries such as cable winches. This slip ring features an integrated system capable of transmitting power, signals, gas, and fluid seamlessly through a reliable 360-degree rotary interface. With a total of 51 channels, including 12 fiber optic signal channels, it ensures high performance and reliability in the most demanding environments.
Electronic & Electric |
Mechanical | |||
| Circuits | Total | 51CKT |
Working Speed |
10RPM |
| Detail | 9*100A+4*55A+9*25A+5*15A+4*signal+12*FO |
A hole diameter |
/ |
|
Rating Voltage |
3200VAC/240AC/24VDC | Contact Material |
High-end Copper Graphite /Precious Metal |
|
Dielectric Strength |
7000VAC@50Hz(P) |
Housing |
Stainless steel 316 |
|
Insulation Resistance |
≥1000MΩ@1000VDC(P) |
Lead Wire Length |
Stator:(undetermined) Rotor:3.6m |
|
Environment |
Remarks | |||
Working Temperature |
-18°C~+45°C |
Application |
Cable Winches |
|
Working Humidity |
≥100%RH |
|||
IP |
IP56 |
Other |
/ | |
For more customized solutions, please feel free to contact us at any time!
