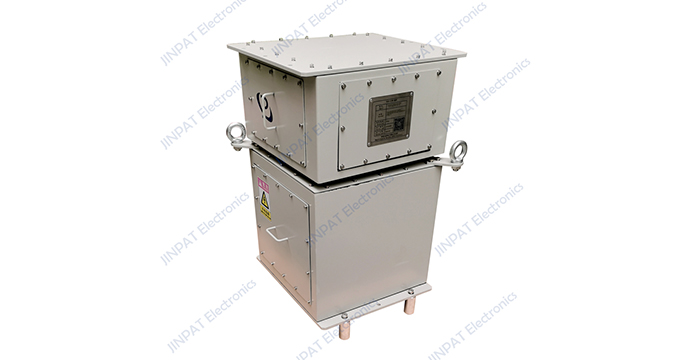

LPA000-03300-01PE-0350-0210-16S Large Volume Series Slip Ring, specifically designed for marine cranes. This slip ring is engineered to deliver reliable power and signal transmission in harsh marine environments. With customizable power capacity and channel configurations, it offers a versatile and robust solution for various marine crane applications.
Features
High Circuit Capacity:
Number of Circuits: 25CKT, providing ample connectivity for power and signal transmission.
Superior Electrical Specifications:
Insulation Resistance: ≥1000MΩ@1000VDC(P) and ≥500MΩ@500VDC(S), ensuring high insulation and safety standards.
Premium Contact Materials:
Contact Material: Made from high-end copper graphite and precious metals, ensuring excellent conductivity and durability.
Integrated Functionality:
Modular Integration: Capable of integrating signal modules, pneumatic/hydraulic modules, and multi-channel fiber optic rotary joints, providing a comprehensive solution for complex marine operations.
Customizable Protection:
Optional Protection Grading: Available with customizable protection grades, including explosion-proof options, to meet specific safety requirements.
Versatile Design:
Adaptability: Customizable power capacity and channel configurations to suit diverse marine crane applications.
This slip ring is an ideal choice for marine cranes, offering a reliable, customizable, and high-performance solution for power and signal transmission in challenging marine environments.
Electronic & Electric |
Mechanical |
|||
| Circuits | Total | 25CKT |
Working Speed |
0~10RPM |
| Detail | 3*300A+1*PE+3*50A+2*10A+16*signal |
A hole diameter |
/ |
|
Rating Voltage |
690VAC/380VAC/220VAC | Contact Material |
High-end Copper Graphite /Precious Metal |
|
Dielectric Strength |
2000VAC@50Hz(P) |
Housing |
Q235 Spray Coating(RAL 7032) |
|
Insulation Resistance |
≥1000MΩ@1000VDC(P) |
Installation |
Vertical Installation |
|
Environment |
Remarks |
|||
Working Temperature |
-10°C~+45°C |
Application |
Marine Crane |
|
Working Humidity |
≥95%RH |
|||
IP |
IP44 |
Other |
/ | |
For more customized solutions, please feel free to contact us at any time!
