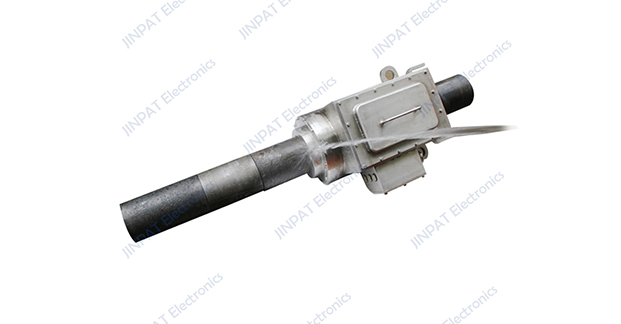

LPA000-02120-01PE Large Volume Series Slip Ring, specifically designed for oil drilling pipe applications. This advanced slip ring is engineered to handle high working voltages and extreme environmental conditions, ensuring reliable and safe transmission of power, signals, gas, and fluid in the demanding oil drilling industry.
Features
High Voltage Capability:
Voltage: Capable of handling up to 2000VAC, making it suitable for high voltage applications in oil drilling operations.
Exceptional Dielectric Strength:
Dielectric Strength: Rated at 6000VAC@50Hz, providing excellent insulation and safety under high voltage conditions.
Integrated Functionality:
Comprehensive Solution: Combines power rings, signal rings, and gas-liquid channels into one integrated solution, enabling continuous 360-degree rotary transmission.
Robust and Durable Design:
High Sealing Pressure: Designed to withstand high sealing pressure, ensuring durability and reliability in harsh drilling environments.
Anti-Explosion Features: Built with safety in mind, featuring anti-explosion capabilities to handle the rigors of oil drilling operations.
The LPA000-02120-01PE slip ring is an ideal choice for oil drilling pipes, offering a robust, reliable, and high-performance solution that ensures seamless and safe transmission of essential power, signals, and fluids in demanding drilling environments.
Electronic & Electric |
Mechanical | |||
| Rating Voltage | 2000VAC |
Working Speed |
200RPM |
|
Circuitos |
2*120A |
installation |
Vertical Installation |
|
Compressive strength |
6000VAC@50Hz |
Contact Material |
Copper graphite |
|
Insulation Resistance |
1000MΩ@1000VDC |
Housing |
Stainless steel316/42CrMO |
|
Environment |
Remarks | |||
Working Temperature |
-20°C~+65°C |
Application |
Oil Drilling Pipe |
|
Working Humidity |
≥95%RH |
|||
IP |
Waterproof at 69mpa |
Other |
/ | |
For more customized solutions, please feel free to contact us at any time!
