The HD-SDI slip ring is a key component designed for High Definition Serial Digital Interface (HD-SDI) signal transmission.
It enables continuous, stable and uninterrupted transmission of HD-SDI signals in rotating equipment.
With its high-precision contact design and high-quality materials, it effectively reduces signal attenuation and distortion,
ensuring the quality and integrity of HD video.
With good compatibility and reliability, HD-SDI slip rings can adapt to various complex working environments and application scenarios.
Whether in the field of broadcasting and television, video surveillance, medical imaging, or in industrial automation,
aerospace and other professional fields, it can play an important role in the normal operation of the equipment
and provide a strong guarantee of high-quality signal transmission.
HD-SDI slip rings are ideal for realizing reliable transmission of high-definition video signals in rotating equipment.
JINAPT brings you five outstanding HD-SDI slip rings.
LPC-24A-0210-4S-HD01: Reliable signal transmission, ideal for camera stabilizers;

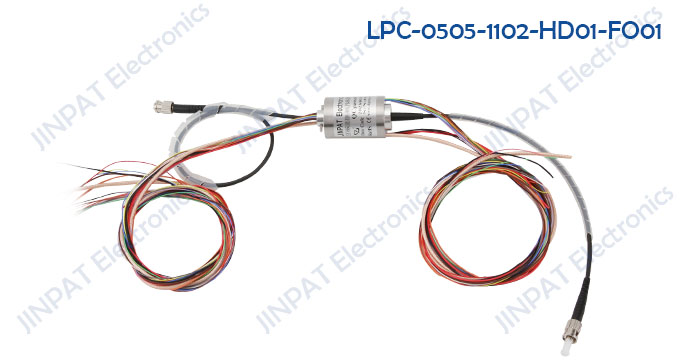

LPC-0505-1102-HD01-FO01 : Unique in integrating SDI signals with fiber optic signals, suitable for optical pods;
LPM-30B-24S-HD01 : able to integrate multiple signals, excellent performance in camera jibs;
LPM-06A-HD01 : can be used in tandem with 3 slip rings, also used in camera jibs;

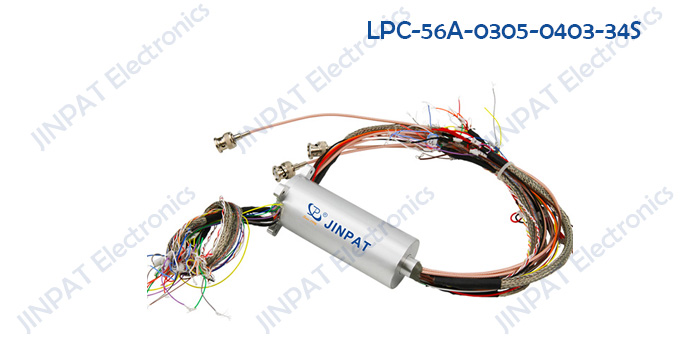

LPC-56A-0305-0403-34S: with 3-channel HD-SDI signal transmission capability, it is widely used in military industry.
Each of these five products has its own characteristics, which can meet the needs of different scenarios
and provide a reliable guarantee for your HD signal transmission.
1. SDI signals using coaxial cable transmission, the conventional use of 75Ω coaxial cable
2. SDI conventional use of connector types are BNC/SMB/F/N connectors, etc.
3. Rate up to 1.485Gbps or 1.5Gbps (myopic value)
4. Resolution and frame rate 1080P@30Hz,720P@60Hz.
5.Customizable for more signal requirements
Installation and maintenance
Installation: Follow the product manual for installation to ensure that each connection is secure.
Maintenance: Check the connection status of the slip ring regularly, keep it clean, and avoid foreign objects to hinder contact
JINPAT electronic professional slip ring manufacturer
JINAPT has strong technical strength, with more than 10,000 kinds of slip ring scheme drawing database, products sell well all over the world
1. Film and TV production: used for movable and rotatable camera equipments in professional film and TV drama shooting sites to
ensure stable transmission of HD video signals and guarantee the shooting quality.
2. Radio and television: studio equipment for radio and television stations, such as rotatable cameras, stage lighting control equipment, etc.,
to achieve high-quality video and control signal transmission.
3. virtual studio:provide stable 12G-SDI signal transmission for movable and rotating camera equipment and
special effect equipment in various virtual scenes to create realistic visual effects. 4. telemedicine: in medical surgery,
the video and control signals are transmitted stably.
4. Telemedicine: In live medical surgery or remote diagnosis, it is used in adjustable medical camera equipment
to ensure real-time transmission of high-definition medical images.
5. Gaming live broadcast: mobile camera equipment for gaming games, bringing smooth and clear game images to the audience.
6. Aerospace: rotatable monitoring and camera devices in aircraft, satellites and other aerospace equipment
to ensure the transmission of high-definition signals in complex environments.
7. Industrial Inspection: In high-precision industrial inspection equipment, such as rotatable non-destructive testing probes,
to ensure stable transmission of 12G-SDI signals and realize accurate inspection results.
8. scientific research: mobile observation equipment in scientific research experiments,
capable of real-time transmission of high-definition experimental images and data.
