JINPAT SDI Slip Rings support high-definition serial digital signals including HD-SDI, 3G-SDI, 6G-SDI, and up to 12G-SDI, ensuring ultra-low loss transmission with excellent signal integrity. Built for professional broadcast and video systems, they maintain robust performance even when combined with power, Ethernet, or control signals. Standard 75Ω impedance and BNC/SMA connectors ensure compatibility with industry requirements.

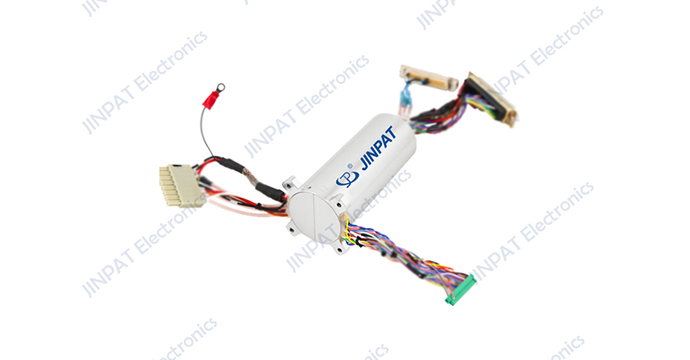

JINPAT Video Signal Slip Rings are designed for the reliable transmission of high-definition video signals in rotating systems. These slip rings support a wide range of video interfaces, including HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI, HDMI, DVI, and DisplayPort, offering stable, interference-free image transmission in dynamic environments.
Available with various connectors such as BNC, SMA, SMB, and F-type, JINPAT’s solutions are easy to integrate and suitable for long-life continuous operation, with a lifespan of several million revolutions. These slip rings are ideal for broadcast gimbals, surveillance systems, UAV pods, radar EO turrets, and inspection robots.JINPAT’s Video Signal Slip Rings are designed for the reliable transmission of high-definition video signals in rotating systems. These slip rings support a wide range of video interfaces, including HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI, HDMI, DVI, and DisplayPort, offering stable, interference-free image transmission in dynamic environments.
Features:
Small size, fewer loops
Enables multi-channel transmission
Achieves stable 3G-SDI and even 6G-SDI transmission
Customizable solutions allow for the use of three slip rings in series
Applications:
Camera jib
Test turntable
Electro-optical
Camera stabilization system
High-definition camera system pod
Video Surveillance
| Anillos colectores de señal de vídeo (SDI) | |||||||||
Typical Model | SDI | Circuits（A） | Voltage（V） | Size | Supports Other Signal Types | ||||
| HD-SDI | 3G-SDI | 6G-SDI | 12G-SDI | Outer Diameter | Length | ||||
| LPMS-05D-0201-SD1 | 1 | 2*1A | 0~48V | Ø5.5 | 9.6 | / | |||
| LPMS-12U-08S-01SD1 | 1 | / | Ø6.5 | 17.4 | 8* Common Signal | ||||
| LPMS-18-0204-0201-01SD1-05S | 1 | 2*4A+2*1A | Ø7.9 | 22 | 5* Common Signal | ||||
| LPM-18-0601-02SD1 | 2 | 6*10A | 0~110V | Ø11.2 | 23.5 | / | |||
| LPM-24-18S-01SDI | 1 | / | / | / | / | ||||
| LPM-12YS-03SD1 | 3 | / | Ø13.3 | 30 | / | ||||
| LPC-06A-02SD1 | 2 | / | 0~220V | Ø22 | 19.2 | / | |||
| LPC-24-0405-05S-01SD1 | 1 | 4*5A | Ø30 | 42.3 | 1*RS485;2*Common Signal | ||||
| LPC-76-0320-20S-01E3-01SD1-IP51 | 1 | 3*20A | Ø35.5 | 122 | 1*Gigabit Ethernet;20*Common Signal | ||||
| LPMS-08A-0301-SD2-01S | 1 | 3*1A | 0~48V | Ø9 | 11.7 | 1*I2C | |||
| LPMS-10B-0501-01SD2-01S | 1 | 5*1A | Ø10 | 13.6 | / | ||||
| LPM-12YU-0702-01SD2 | 1 | 7*2A | 0~110V | Ø12.5 | 25.2 | / | |||
| LPM-18-1202-01SD2 | 1 | 12*2A | Ø12.8 | 23.5 | / | ||||
| LPM-30B-0602-01E2-10S-02SD2 | 2 | 6*2A | Ø16 | 37 | 1*Fast Ethernet;1*CAN;2*RS422 | ||||
| LPC-06-01SD2 | 1 | / | 0~220V | Ø23 | 26 | / | |||
| LPC-24A-04SD2 | 4 | / | Ø22 | 42.3 | / | ||||
| LPC-56A-0405-02SD2-01E3-23S | 2 | 4*5A | Ø25 | 85.7 | 1*Gigabit Ethernet;23*Common Signal | ||||
| LPC-24T-0202-18S-02SD3 | 2 | 2*2A | Ø24.8 | 72.1 | 18* Common Signal | ||||
| LPCC-01B | 1 | 1 | / | / | Ø6.5 | 24.6 | / | ||
| LPCC-01C | 1 | 1 | / | / | Ø13.6 | 35.9 | / | ||
| LPCC-01D | 1 | 1 | / | / | Ø12.4 | 30.46 | / | ||
Customization & Services
Tailor your slip ring with specific signal types, channel counts, protection levels, or mounting styles. 3D CAD models and technical support are available upon request.
Can’t find a suitable model? Contact us for 24/7 technical support .
For detailed product specifications , refer to product datasheets or contact our sales team.
Optimized for global markets – Precision-engineered for reliability in mission-critical applications.
