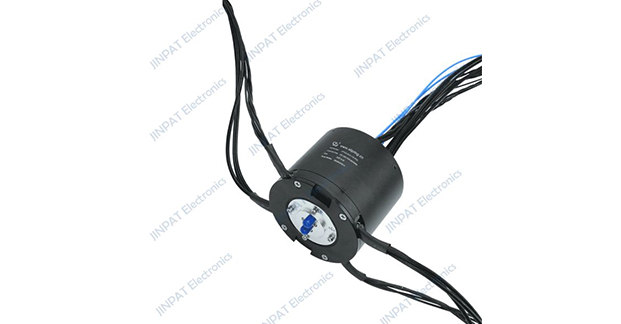

The through-hole RF slip ring adopts an aluminum alloy shell with a protection level of up to IP60, which can effectively prevent dust and water and adapt to various harsh environments. Its core advantage lies in the integration of 1 high-frequency channel and 11 signal channels to meet the needs of stable transmission of high-frequency signals and synchronous transmission of multiple signals. The through-hole design facilitates the passage of cables, saves installation space, and ensures stable and reliable operation of the equipment. The slip ring has a service life of more than 10 million revolutions, is durable, and can significantly reduce maintenance costs. It is widely used in radar systems, satellite communications, medical equipment, industrial automation, and test equipment.
JINPAT through-hole slip rings are based on advanced design concepts and are designed for demanding power and signal transmission systems, especially for automation equipment, robotic arms, rotating platforms and other fields. Its innovative through-hole structure achieves high stability of power transmission during rotation, ensuring that the equipment always maintains the best working condition and meets the demanding requirements of industrial equipment for continuous, efficient and uninterrupted operation.
The stator-upward installation method is adopted to optimize the internal space layout of the equipment, which not only simplifies the installation process, but also improves the convenience of later maintenance, and realizes efficient and fast equipment integration and operation. The product is equipped with an IP60 protection level to effectively prevent dust and water splashes from intruding, ensuring that the slip ring can still operate stably and reliably even in the most demanding working environment.
With precious metal contact technology, JINPAT through-hole slip rings greatly reduce the current contact resistance and ensure the stability and efficiency of power and signal transmission. The application of precious metal contacts not only extends the service life of the product, but also effectively reduces the maintenance frequency and reduces the long-term operating cost of the equipment.
With its excellent performance, exquisite craftsmanship and ultimate reliability, JINPAT through-hole slip rings have become an ideal choice for industrial equipment power transmission systems, helping your equipment to always operate efficiently and stably in complex environments.
LPT000-0615-11S-HF02 Outline Drawing
Electronic & Electric |
Mechanical | |||
Circuits |
18CKT |
Working Speed |
0~200rpm |
|
Via diameter |
∅35mm |
|||
Rating Voltage |
/ |
Surface treatment |
Conductive Oxidation |
|
Power load capacity |
0.5/48VDC@RF full power 2A/48VDC@5W average power |
Shell Material |
Engineering plastic |
|
Peak Power |
1000W |
Lead Wire Length |
Stator:＞1500mm Rotor:＞3000mm |
|
Environment |
Remarks | |||
Working Temperature |
-55°C~+70°C |
Service life (min） |
10 million rpm |
|
Working Humidity |
95%RH |
Other |
/ |
|
IP |
IP60 |
Note: "P" stands for power, "S" stands for signal. |
||
