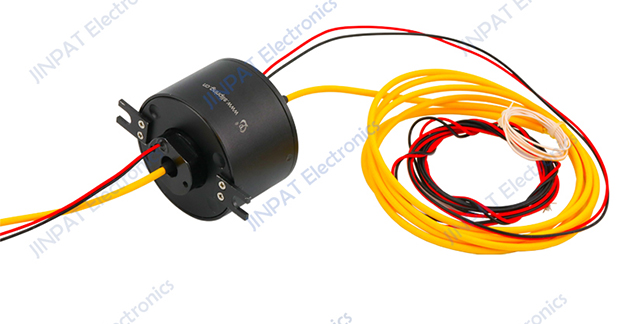

The through-hole fiber optic slip ring adopts an aluminum alloy sandblasted oxidized black shell, which has both high strength and corrosion resistance, and a protection level of IP54, which can adapt to a variety of complex environments. Its core design supports 1-channel fiber optic signal transmission, supports multi-channel fiber customization, and has an operating speed of more than 4000rpm. It can operate stably in a wide temperature range of -40°C to 70°C to ensure high-performance data transmission. The through-hole structure facilitates cable installation and saves space. It also supports multi-channel customization to meet the needs of different application scenarios. It is suitable for high-speed rotating equipment, medical imaging, industrial automation, military communications and other fields, and is an ideal choice for high-performance fiber optic signal transmission.

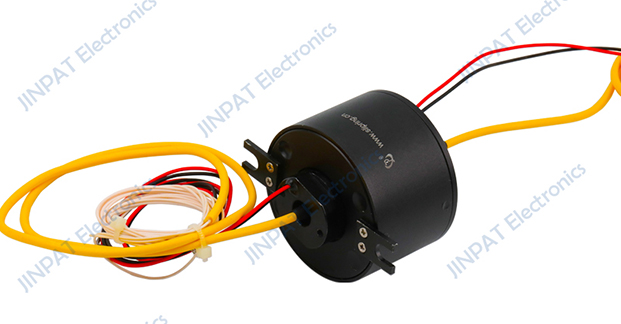

LPT000-0203-F001 adopts aluminum alloy sandblasted oxidation black shell, which has high strength and corrosion resistance, protection level up to IP54, and adapts to a variety of complex environments. Its core design supports 1-channel optical fiber signal transmission, supports multi-channel optical fiber customization, operating speed exceeds 4000rpm, and operates stably in a wide temperature range of -40°C to 70°C, ensuring high-performance data transmission.
LPT000-0203-F001 Outline Drawing
Electronic & Electric |
Mechanical | |||
Circuits |
2CKT 2*3A |
Working Speed |
0~4000rpm |
|
Inner Diameter |
∅56mm |
|||
Rating Voltage |
380VAC |
Contact Material |
Precious Metal |
|
Dielectric Strength |
Between two circuits ≥1000V@50Hz |
Shell Material |
Aluminum alloy sandblasting black oxide |
|
Insulation Resistance |
500MΩ@500VDC |
Lead Wire Length |
Stator:500mm Rotor:＞1500mm |
|
Environment |
Remarks | |||
Working Temperature |
-40°C~+70°C |
Application |
/ |
|
Working Humidity |
≤60%RH |
Other |
/ |
|
IP |
IP54 |
Note: "P" stands for power, "S" stands for signal. |
||
