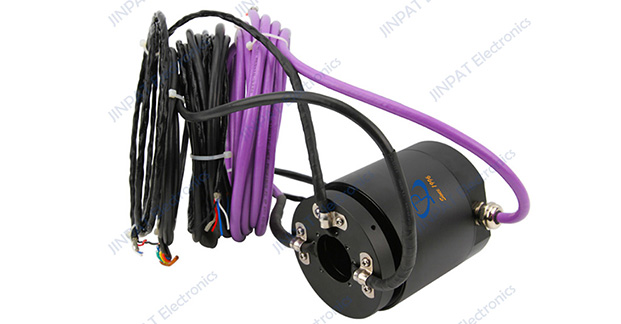

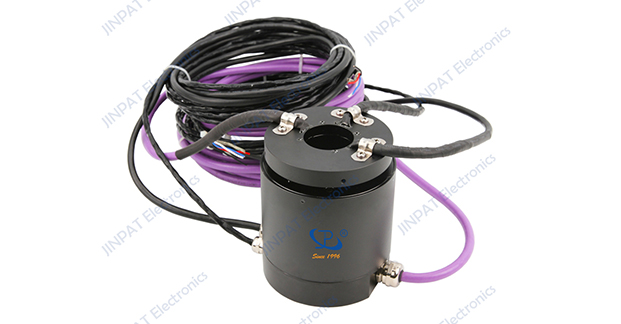

In the fields of industrial automation, robotics, rotating equipment, etc., the stability and reliability of signal transmission are crucial. With its superior design, exquisite craftsmanship and excellent performance, LPT038-0406-08S through-hole slip ring has become an ideal choice for solving signal transmission problems in high-load, high-speed rotating systems.
38 through-hole design: LPT038-0406-08S adopts a 38mm through-hole design, which is suitable for large equipment and special applications that require transmission through the center hole. It can provide perfect signal transmission in rotating equipment while allowing maximum utilization of physical space.
LPT038-0406-08S through-hole slip ring has become the preferred solution for signal transmission in industrial equipment with its unique design and excellent performance. If you have any signal transmission needs, please contact us, we will provide you with the most suitable products and customized services to help your equipment maintain optimal performance in any environment.
LPT038-0406-08S Outline Drawing
Electronic & Electric |
Mechanical | |||
Circuits |
4/8CKT 4*6A/8*signals |
Working Speed |
0~100rpm |
|
Inner Diameter |
∅98mm |
|||
Rating Voltage |
220VAC/24VAC |
Contact Material |
Precious Metal |
|
Dielectric Strength |
500VAC@50Hz |
Shell Material |
Aluminum alloy sandblasting black oxide |
|
Insulation Resistance |
>500VAC@50Hz(P) >100VAC@50Hz(S) |
Lead Wire Length |
Stator:＞2000mm Rotor:＞3000mm |
|
Environment |
Remarks | |||
Working Temperature |
-20°C~+60°C |
Installation |
The rotor end is screwed onto the customer-supplied spindle |
|
Working Humidity |
≤60%RH |
Other |
/ |
|
IP |
IP54 |
Note: "P" stands for power, "S" stands for signal. |
||
