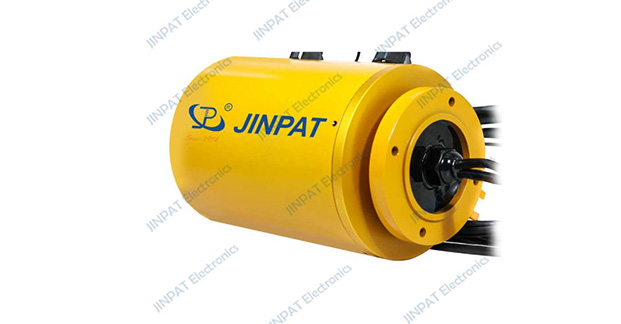

JINPAT through-hole crane slip ring adopts advanced technology and is specially designed for power and signal transmission of lifting equipment. It has excellent anti-interference and high reliability. Whether it is a port crane, tower crane or other heavy equipment, it can provide a stable power supply to ensure long-term stable operation of the equipment under high load and high frequency rotation conditions.
LP60SHD Outline Drawing
Electronic & Electric |
Mechanical | |||
Circuits |
2CKT 2*10A 、2*signals |
Working Speed |
0~50rpm |
|
Inner Diameter |
∅80mm |
|||
Rating Voltage |
24VAC |
Contact Material |
Precious Metal |
|
Dielectric Strength |
300VAC@50Hz |
Shell Material |
Aluminum Alloy |
|
Insulation Resistance |
1000MQ@500VDC |
Lead Wire Length |
Stator:2500mm Rotor:1500mm |
|
Environment |
Remarks | |||
Working Temperature |
-40°C~+80°C |
Application |
/ |
|
Working Humidity |
≤90%RH |
Other |
/ |
|
IP |
IP65 |
Note: "P" stands for power, "S" stands for signal. |
||
