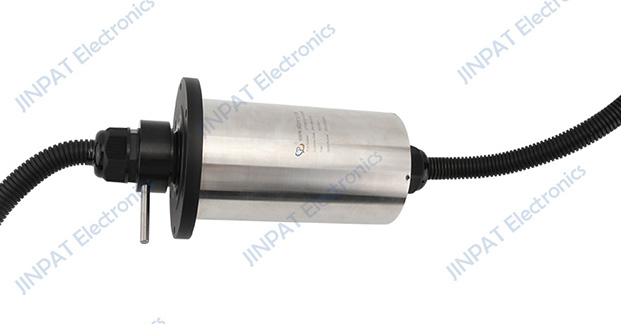

JINPAT through-hole slip rings are core components tailored for high-demand power and signal transmission systems, and are widely used in automation equipment, rotating platforms, lifting equipment and other fields. No matter how complex the equipment operating environment is, JINPAT slip rings rely on their strong technical advantages to ensure that the equipment can stably and reliably transmit power and signals under continuous high load and high frequency rotation.
JINPAT through-hole slip rings - provide seamless and efficient power transmission for your equipment, ensuring stable and reliable operation every time. Contact us now to learn more about our products and customize your exclusive solutions!
LPT000-0332-01GND Outline Drawing
Electronic & Electric |
Mechanical | |||
Circuits |
6*20A, 16*signals |
Working Speed |
0~300rpm |
|
Inner Diameter |
∅25.4mm |
|||
Rating Voltage |
380VAC |
Contact Material |
Precious Metal |
|
Dielectric Strength |
Between two lines>1000V@50Hz |
Shell Material |
Aluminum alloy sandblasting black oxide |
|
Insulation Resistance |
500MN@500VDC 100MΩ@300VDC (signal) |
Lead Wire Length |
Stator:300mm Rotor:300mm |
|
Environment |
Remarks | |||
Working Temperature |
-20°C~+60°C |
Application |
/ |
|
Working Humidity |
≤60%RH |
Other |
Customizable |
|
IP |
IP54 |
Note: "P" stands for power, "S" stands for signal. |
||
