Through Bore slip rings are also called hollow shaft slip rings. Their through bore design is designed to facilitate installation on the shaft at the application end, allowing other fluid/gas channels or power lines to pass through. They can be flexibly installed on the shaft of the robot arm to help manipulate and connect to different joints of the application; they can transmit analog signals, digital signals and electricity, and are widely used in industrial manufacturing. In addition to allowing pipes and wires to pass through the slip ring unit, the hollow shaft structure can also be integrated with other electrical slip rings, such as RF slip rings, fiber optic rotary joints, and hydraulic and pneumatic rotary joints.
A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. A slip ring is also called a rotary electrical interface, collector, swivel or a commutation. A slip ring can improve system performance by simplifying operations and eliminating damage-prone wires dangling from movable joints.

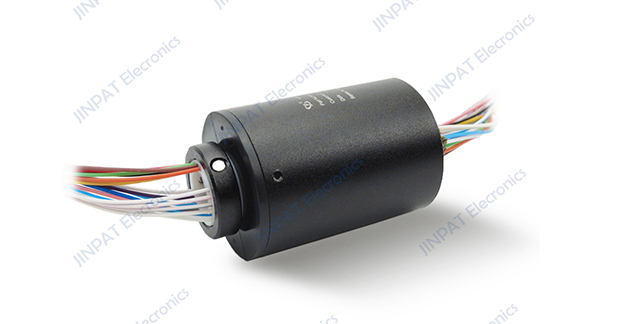

The JINPAT LPT009-0204-05S series slip rings provide an economical, off-the-shelf solution when a compact through-hole configuration is required.
This series offers a 9.55mm through hole for routing hydraulic or pneumatic lines for applications with minimal space. The 5A is available in 6, 12, 18 and 24 way ring configurations with up to 4 housing lengths.
The design features long-life fiber brush contact technology for ultimate performance in many challenging applications; the fiber brushes require no lubrication, generate virtually no wear debris, and are maintenance-free.
If you have special requirements, please contact us immediately so that our sales engineers can recommend slip ring models or design custom slip rings for you!
LPT009-0204-05S Outline Drawing
Electronic & Electric |
Mechanical | |||
Circuits |
7CKT 2*4A+5*signals |
Working Speed |
0~300rpm |
|
Inner Diameter |
∅9.55mm |
|||
Rating Voltage |
24V |
Contact Material |
Precious Metal |
|
Dielectric Strength |
500VAC@50Hz |
Shell Material |
Engineering plastic |
|
Insulation Resistance |
≥300MΩ@500VDC |
Lead Wire Length |
Stator:300mm Rotor:300mm |
|
Environment |
Remarks | |||
Working Temperature |
-20°C~+60°C |
Application |
/ |
|
Working Humidity |
≤60%RH |
Other |
/ |
|
IP |
IP54 |
Note: "P" stands for power, "S" stands for signal. |
||
LPT009-0204-05S-Outline Drawing
