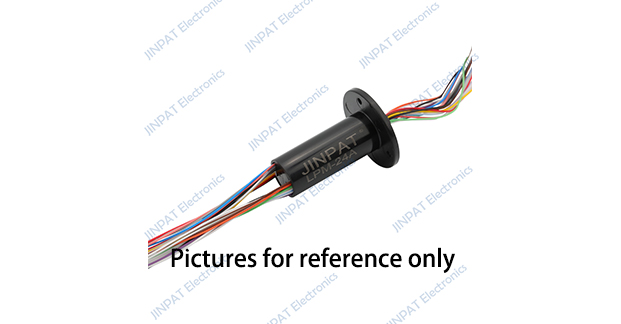

LPM-24A-VE Slip Rings O.D. and length φø15.5*39.7mm, channel 24, adopts domestic high standard surface treatment process, high design precision, compact shape, easy installation. The contacts are made of gold-to-gold to ensure extremely low contact resistance and long working life, especially suitable for small and medium-sized systems, transmitting weak control signals. Slip Rings can be supplied with different electrical pathway combinations, such as video, control, sensing, sealing grade, industrial Ethernet, etc.
If you have special requirements, please contact us immediately so that our sales engineers can recommend slip ring models or design customised slip rings for you.
Electronic & Electric |
Mechanical | |||
Circuits |
Total |
24-way |
Working Speed |
0~300rpm |
Detail |
24×1A |
Eletrical Noise |
≤35mΩ (running at 50 rpm) |
|
Rating Voltage |
0~110V AC/24V DC |
Contact Material |
Gold to Gold |
|
Dielectric Strength |
≥200VAC@50Hz（power） ≥100VAC@50Hz（signals） |
Housing Material |
Engineering plastics |
|
Insulation Resistance |
≥50MΩ@200VDC（power） ≥10MΩ@100VDC（signals） |
Lead wire specification Stator |
ø0.7- AWG30# cross-silver Teflon |
|
Environment |
Remarks | |||
Working Temperature |
-20°C~+60°C |
Lifespan |
/ |
|
Working Humidity |
Below 60% RH |
Other |
/ |
|
IP |
IP40 |
/ |
||
Product Advantages:
★ Standardised and modular design
★ Variety of external dimensions to suit different customer needs.
★ Patented fibre brush plating technology ensures low electrical noise and low wear and tear.
★ Adopt the American JUN surface gold-plating technology to ensure long working life.
★ Meet the 360 ° unrestricted rotation of the USB, HDMI, SDI, Ethernet, RS422 and other up to 30 kinds of signal transmission
Product Features:
★ Transmission of analogue and digital signals.
★ Transmission of analogue and digital signals
★ Standard modules can be loaded to meet the power and signal transmission at the same time
★ Advanced fibre brush technology, maintenance-free, no lubricant required
★ Multi-point contact per channel, low contact pressure, low contact wear
★ Special slot design for smooth rotation and low electrical noise
Applications：
★ Medical Equipment
★ Radar Antenna
★ Rotary Table
★ Robot
★ Electrical Test Equipment
★ Small Wind Turbines
