The slip ring is the key component of the vehicle electronic countermeasures system.
It can realize continuous and stable transmission of power, signal and data during vehicle driving and electronic countermeasure equipment operation.
This slip ring uses advanced technology and high-quality materials,with excellent anti-interference performance and high reliability.
It can adapt to the complex electromagnetic environment of the vehicle, ensure that the electronic countermeasures equipment can accurately and quickly receive and send information under various working conditions, effectively interfere with the enemy electronic equipment, and protect the communication and combat safety of our vehicles.
The precise design and manufacture of the slip ring of the vehicle electronic countermeasure equipment make it able to withstand adverse factors such as vibration, shock and temperature change during vehicle driving, which provides strong support for the efficient operation of the vehicle electronic countermeasure system.

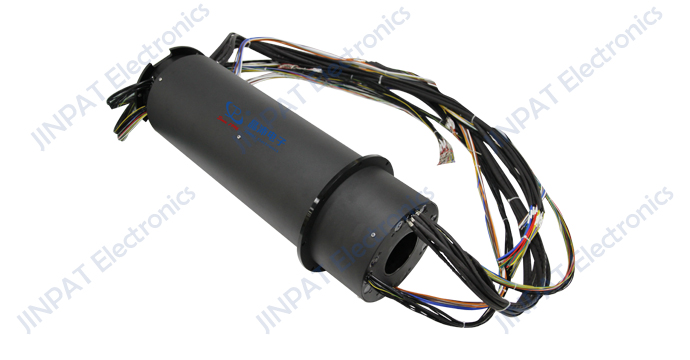

LPT100-0550-0530-0420-1610-59S-E3-E2 is a high-performance slip ring specially
designed for on-board electronic countermeasures equipment.
It combines advanced technology and exquisite craftsmanship with a variety of outstanding features.
Structurally, the design is rigorous and compact, enabling complex power,
signal and data transmission functions in a limited space.
With multiple channels, it can meet the diversified transmission needs of
electronic countermeasures equipment and ensure the accurate and fast transmission of information.
The contact part is made of high-quality materials, and the contact resistance is very small,
which effectively reduces signal attenuation and energy loss.
The slip ring also has good anti-interference ability, and can work stably in the
complex electromagnetic environment of the vehicle electronic countermeasures equipment,
without being affected by external interference.
At the same time, it has excellent seismic and shock resistance,
and can adapt to various bumps and vibrations during vehicle driving.
The LPT000-0230-0405-23S is a slip ring designed for on-board electronic countermeasures equipment.
This slip ring uses high-quality materials and precision manufacturing processes to ensure excellent and stable performance.
It can efficiently transmit power, signals and data, providing strong support for the normal operation of electronic countermeasures equipment.
In the design, the particularity of the vehicle environment is fully considered, and it has good
anti-vibration and anti-impact ability, and can maintain a stable working state under the complex working conditions of the vehicle.
Its shell has good protective performance, can effectively dust-proof, waterproof, adapt to a variety of harsh environment.
In addition, the LPT000-0230-0405-23S slip ring also has the characteristics of low loss and high transmission efficiency,
which can ensure the accurate operation and efficient work of electronic countermeasures equipment.
1. The working environment is suitable for the high cold ring
2. Integrated high-power supply, a variety of signals, 100 Mbit/s network and Gigabit network (can be customized according to customer needs)
3. Integrated high frequency/fiber/waveguide swivel
4. Shock resistance, vibration resistance, moisture and heat resistance test
Installation and maintenance
Installation: Follow the product manual for installation to ensure that each connection is secure.
Maintenance: Check the connection status of the slip ring regularly, keep it clean, and avoid foreign objects to hinder contact
JINPAT electronic professional slip ring manufacturer
JINPAT has strong technical strength, with more than 10,000 kinds of slip ring scheme drawing database, products sell well all over the world
Military operations: On the battlefield, provide stable signal transmission for armored vehicles and
tanks equipped with electronic countermeasures equipment, interfere with enemy communications and radar systems,
and ensure the communication safety of our combat vehicles.
Anti-terrorism and stability maintenance: Special vehicles used in anti-terrorism and stability maintenance tasks,
effective electronic equipment against terrorists, to ensure the smooth progress of operations.
Border Patrol: Installed on Border patrol vehicles to prevent enemy electronic reconnaissance and interference,
to protect the normal operation of communication and monitoring equipment in the border area.
Emergency communication support: In the case of major natural disasters or emergencies,
provide support for the electronic countermeasures equipment of emergency communication vehicles
to ensure the smooth and safe communication.
Important event security: such as large international conferences, sports events, etc.,
to ensure the normal operation of the electronic countermeasures system of security vehicles to prevent potential electronic threats.
Intelligence collection vehicles: Support electronic countermeasures equipment on intelligence collection vehicles
to obtain and analyze enemy electronic signals to help intelligence work.
