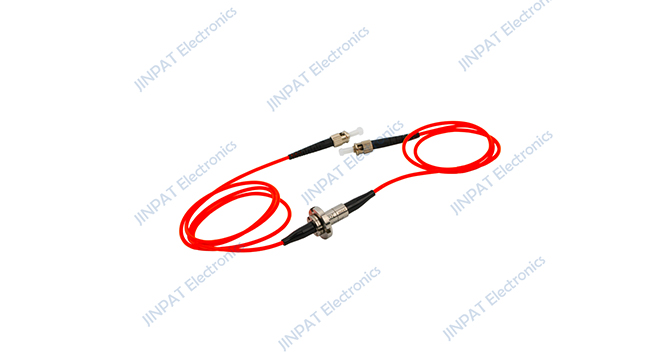

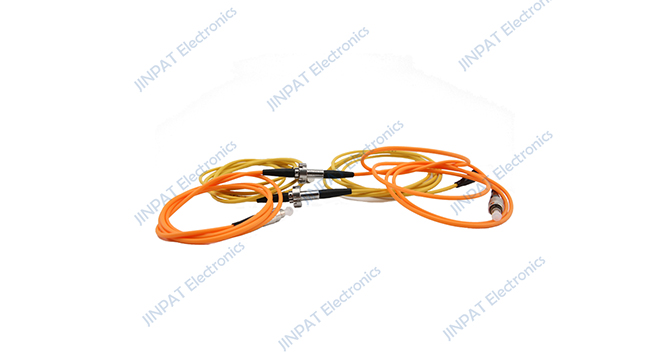

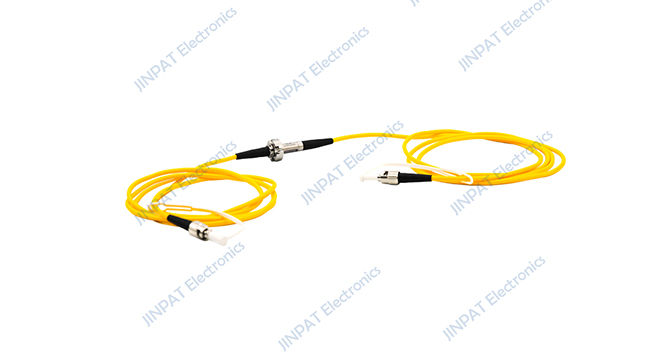

Built to withstand the harshest conditions, the LPFO fiber optic slip ring is engineered for durability and reliability. Its robust construction, combined with advanced sealing technology, ensures optimal performance in demanding environments, from extreme temperatures to dusty and wet conditions.
The fiber optic rotary connector, also known as a fiber optic slip ring, fiber optic rotary joint, or fiber optic hinge, uses optical fibers as the data transmission medium. It provides a technical solution for data transmission between system components that require rotational connections. It is suitable for applications where continuous or intermittent rotation is needed while transmitting large volumes of data and signals from a fixed position to a rotating position. This device can improve mechanical performance, simplify system operation, and prevent damage to optical fibers caused by the rotation of moving joints. It can be used in conjunction with traditional electrical slip rings to form hybrid electro-optical slip rings, capable of transmitting both power and high-speed data.
Specifications | |||
Fiber types |
SM or MM |
Connector types |
F C/SC/ST/LC(PC or APC) |
|
Channel number |
1 |
Estimated life cycle |
＞200 million revolutions |
|
Wavelength range |
SM:1270-1650nm MM:650-1300nm |
Vibration |
MIL-STD-167-1A |
Insertion loss |
＜2dB |
Mechanical shock |
MIL-STD-810G |
|
Insertion loss ripple |
＜0.5dB |
IP rating |
IP65 or IP68 |
|
Return loss |
≥40dB |
Maximum speed |
2000rpm |
|
Max Optical power |
23dBm |
Working temperature |
-45～+80℃ |
|
Package style |
Pigtails on both ends |
Storage temperature |
-55~+85℃ |
|
Weight, approx |
10g（No tail cable andconnection included） |
Jacket types |
0.9/2/3mm(Kevlar/PVC or Armor) |
LPFO-01A Product Outline Diagram
LPFO-01B Product Outline Diagram
LPFO-01D Product Outline Diagram
LPFO-01E Product Outline Diagram
Advantages and features:
◆ No contact and friction, long life, up to 10 million rpm (more than 100 million rpm for signal channel )
◆ Can combine with multiple signals such as video, series, and Ethernet signal, etc.
◆ Use optical fiber to transmit information, no leakage, no electromagnetic interference; can transmit tens of hundreds of kilometers of networking applications over long distances
◆ The transmission bandwidth is much larger than the electrical connector, and it can be used to double the bandwidth with the wavelength diision multiplexer.
◆ Small in volume and light in weight that is easy with electric slip ring, and system is easy to upgrade and сhange
◆ Providing the word's smallest single-channel fiber optic rotary ioint, as well as double-channels, four-channels ten-channel or even more channel for your option
◆ Providing photoelectric integrated rotary joint
Application Areas：
◆ Robotics
◆ Mlaterial conveying system
◆ Rotating turret on the vehicle
◆ Rermote control systemn
◆ Radar system
◆ Offshore and marine system
◆ High speed video, digital, analog signal transmission and control of optic fiber sensor revolving table
◆ Medical system
◆ Video surveillance system
◆ National or international security systems
◆ Subsea operating systerns
