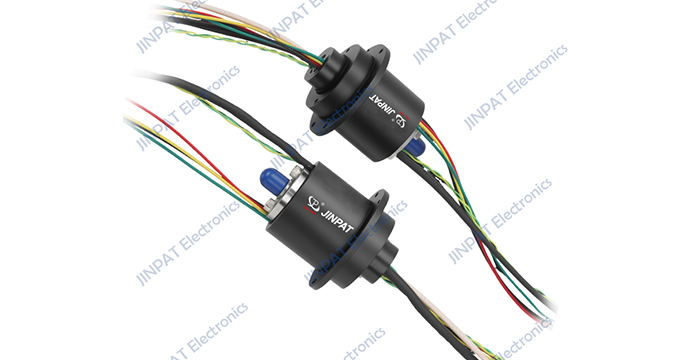

Industrial Fieldbus Slip Rings – Reliable Transmission for Modern Automation
JINPAT fieldbus slip rings support a wide range of protocols, including Profibus-DP, CANopen, EtherCAT, Profinet, Modbus, RS485, and Industrial Ethernet. With shielded wiring and isolated channels, they ensure low noise, no packet loss, and stable transmission.
The modular design allows custom combinations of power, signal, encoder, and fieldbus channels—ideal for servo systems, controllers, laser machines, wind turbines, and rotating platforms in harsh industrial environments.
Typical Applications Include:
Imaging systems
Lithium battery production lines and precision laser systems
Wind turbine blade control
Rotating medical scanners
Fieldbus communication between encoders
Servo motors and controllers in industrial automation systems
Application
◎ Imaging systems
◎ Wind turbine blade control
◎ Rotating medical scanners
◎ Fieldbus communication between encoders
◎ Lithium battery production lines and precision laser systems
◎ Servo motors and controllers in industrial automation systems
| CC-Link Slip Rings | ||||||||||
| Typical Model | Circuits | Inner Diameter(mm) | CC-Link channels | Other signal channel | Voltage | Size（mm） | Compatible with both signal types | |||
| Special signals | Normal signals | Outer diameter | Length | Special signals (U2, U3, SDI, E2, E3、HD-SDI) | Standard signals (CAN/CANbus, Profibus, RS422/485, CC-Link, DeviceNet, etc. | |||||
LPC-D30-1501-01S | 30 | 0 | 1 | / | / | / | Φ30 | / | / | / |
LPC-D39-20S-05E3 | 39 | 0 | 4 | 5 | 0 | 0~24VAC/DC | Φ39 | 140.5 | E3 | / |
TMC-LPC-76A | 0 | 0 | 2 | 3 | / | 0~240VAC | Φ35.5 | 105.7 | E2,E3 | / |
LPT400-0730-04S | 7*30A | Φ 400mm | 1 | / | / | 0~400VAC | Φ660 | 321 | / | / |
| Model numbers decode key specs: For example, "LPC-D30-1501-01S-02U3" breaks down as LPC (Capsule type), 30 Circuits, 1 CC-Link bus signal channels, and 2 USB3.0 channels (E4=10G; E2=100M, E3=1G U2=USB2.0 U3=USB3.0). | ||||||||||
| DeviceNet Slip Rings | ||||||||||
| Typical Model | Circuits | Inner Diameter(mm) | CC-Link channels | Other signal channel | Voltage | Size（mm） | Compatible with both signal types | |||
| Special signals | Normal signals | Outer diameter | Length | Special signals (U2, U3, SDI, E2, E3、HD-SDI) | Standard signals (CAN/CANbus, Profibus, RS422/485, CC-Link, DeviceNet, etc. | |||||
LPT080-0220-05S-01A | 2*20 | Φ 80mm | 5 | / | / | 240VAC/220AC | Φ170 | 171. | / | / |
| Model numbers decode key specs: For example, "LPT080-0220-05S" breaks down as LPT (Through-bore type), 80mm inner diameter, 5 DeviceNet bus signal channels. | ||||||||||
Customization & Services
Tailor your slip ring with specific signal types, channel counts, protection levels, or mounting styles. 3D CAD models and technical support are available upon request.
Can’t find a suitable model? Contact us for 24/7 technical support .
For detailed product specifications , refer to product datasheets or contact our sales team.
Optimized for global markets – Precision-engineered for reliability in mission-critical applications.
